Empty Space Detection

The empty space detector is an optional scene analysis step in isaacsim.replicator.object. You declare it as a top-level key in the description file (alongside other mutables) with detector_type: empty_space. At runtime the extension creates a temporary detector volume, voxelizes the region using ray casts, classifies free space, and writes 3D bounding boxes and 2D polygon footprints of detected empty regions into per-detector metadata. The implementation lives in EmptySpaceDetector (mutables/detector.py) and SpaceDetectManager (mutables/detector_internal/space_detect_manager.py).

Use it for workflows that need explicit free-space regions (for example bin packing, placement, or annotating voids) in addition to tracked object geometry.

When it Runs

Detectors are initialized and run during the normal simulation workflow after the USD scene for the frame has been updated. The detector prim is removed from the stage when detection finishes. Enable visualization flags (see below) if you want to see scope, voxels, or height-span debug drawing in the viewport for that frame.

Scope geometry (required)

Each detector entry must define a 3D axis-aligned scope. You can use either naming style:

Key	Meaning	Notes
translate or center	3-vector position of the detector volume	Same units as the stage (typically meters when default_meters_per_unit is 1).
scale or size	3-vector extent of the box	Values are interpreted in centimeters; internally they are converted to meters for the USD transform (refer to EmptySpaceDetector in the extension source).

Example (excerpt):

my_empty_space_detector:
  detector_type: empty_space
  translate: [0, 0, 0.25]
  scale: [500, 500, 200]   # centimeters: width, depth, height of the analysis region

Detection Parameters

Detection Parameters are optional. These keys are read from the same detector block (the dictionary named after your detector, for example my_empty_space_detector). All numeric thresholds below are in meters unless your scene uses a different meters-per-unit convention. Defaults match EmptySpaceDetector.detect in the extension.

Key	Type	Default	Description
cell_size	numeric	0.05	Voxel / grid resolution along X and Y.
cell_height_threshold	numeric	0.2	Minimum vertical clearance used when classifying empty height spans.
x_length_threshold	numeric	0.2	Minimum extent along X for a region to count as empty space.
y_length_threshold	numeric	0.2	Minimum extent along Y for a region to count as empty space.
exclusive_ratio_threshold	numeric	0.8	Ratio used when filtering candidate regions (higher tends to retain more regions; range 0.0–1.0).
top_tolerance	numeric	0.2	Height tolerance at the top of a span.
bottom_tolerance	numeric	0.1	Height tolerance at the bottom of a span.
max_stack_height	numeric / null	None	Optional cap on stack height in meters; None means no limit.

You can drive several of these from a single root-level macro (for example a shared cell_size in meters) using Macro expressions such as $[/cell_size] * 2.0.

Visualization

Visualization is optional.

Key	Type	Description
visualize	bool	Draw 3D boxes for detected free regions and 2D polygon outlines when True.
visualize_raycast	bool	Draw raycast or height-span debug (for example yellow height-span visualization in the sample config).
visualize_color	list	RGBA for 3D bbox drawing; default [1, 0, 0, 0.5].
visualize_2d_color	list	RGBA for 2D polygon outlines; default [0, 1, 0, 0.5].
visualize_scope	bool	Show the detector scope as a wireframe when True; default True when visualization runs.

Visualization Color Legend

When debug draw is available (isaacsim.util.debug_draw), the viewport uses the following default colors. You can change the 3D box and 2D outline colors with visualize_color and visualize_2d_color. The other colors listed below are fixed in space_detect_visualization.py.

Color (default)	Meaning	Notes
Yellow wireframe (RGBA 1, 1, 0, 0.3)	Detector scope (analysis volume)	The axis-aligned box you defined with translate/center and scale/size. Shown when visualize is True and visualize_scope is True.
Red wireframe (default visualize_color: 1, 0, 0, 0.5)	3D empty-space result	One box per detected free region: edges of the 3D bounding boxes written to detected_space_3d.
Green polylines (default visualize_2d_color: 0, 1, 0, 0.5)	2D empty-space result (footprint)	Outlines of free regions projected to the ground plane (near min_height), matching detected_space_2d outlines.
Magenta (1, 0, 1, 0.5)	Holes inside 2D regions	Fixed color for hole boundaries; not controlled by YAML.

If visualize_raycast is True, raycast and height-span debug lines are drawn in addition to the colors above:

Color	Meaning	Notes
Yellow vertical segments (1, 1, 0, 0.5)	Per-voxel height span along the cast direction	One vertical line per free height interval in the voxelization grid.
Red points (1, 0, 0, 0.5)	Base of each span	Lower bound of a height interval.
Green points (0, 1, 0, 0.5)	Ceiling of each span	Upper bound of a height interval.

The raycast green points are not the same as the green 2D polygon outlines. Turn off visualize_raycast if you only want the final 2D and 3D empty-space overlays.

Outputs

After detect completes, the extension stores results on the metadata entry for that detector key:

• detected_space_3d: list of dicts with translate and scale (each axis-aligned free region in world space).

• detected_space_2d: serialized polygons (id, min_height, max_height, outline, holes) suitable for logging or downstream tools.

Exact consumption of these fields in written outputs depends on your output switches and description logging pipeline.

Example Configuration

The extension ships a full demo that uses a Z-up stage, basic primitives on a floor, and an empty_space detector with macros and visualization enabled:

PATH_TO_CORE_EXTENSION/isaacsim/replicator/object/core/configs/demo_empty_space.yaml

Select that YAML from the Object SDG panel, or pass it as --/config/file=... when running headless, to reproduce the workflow end to end.

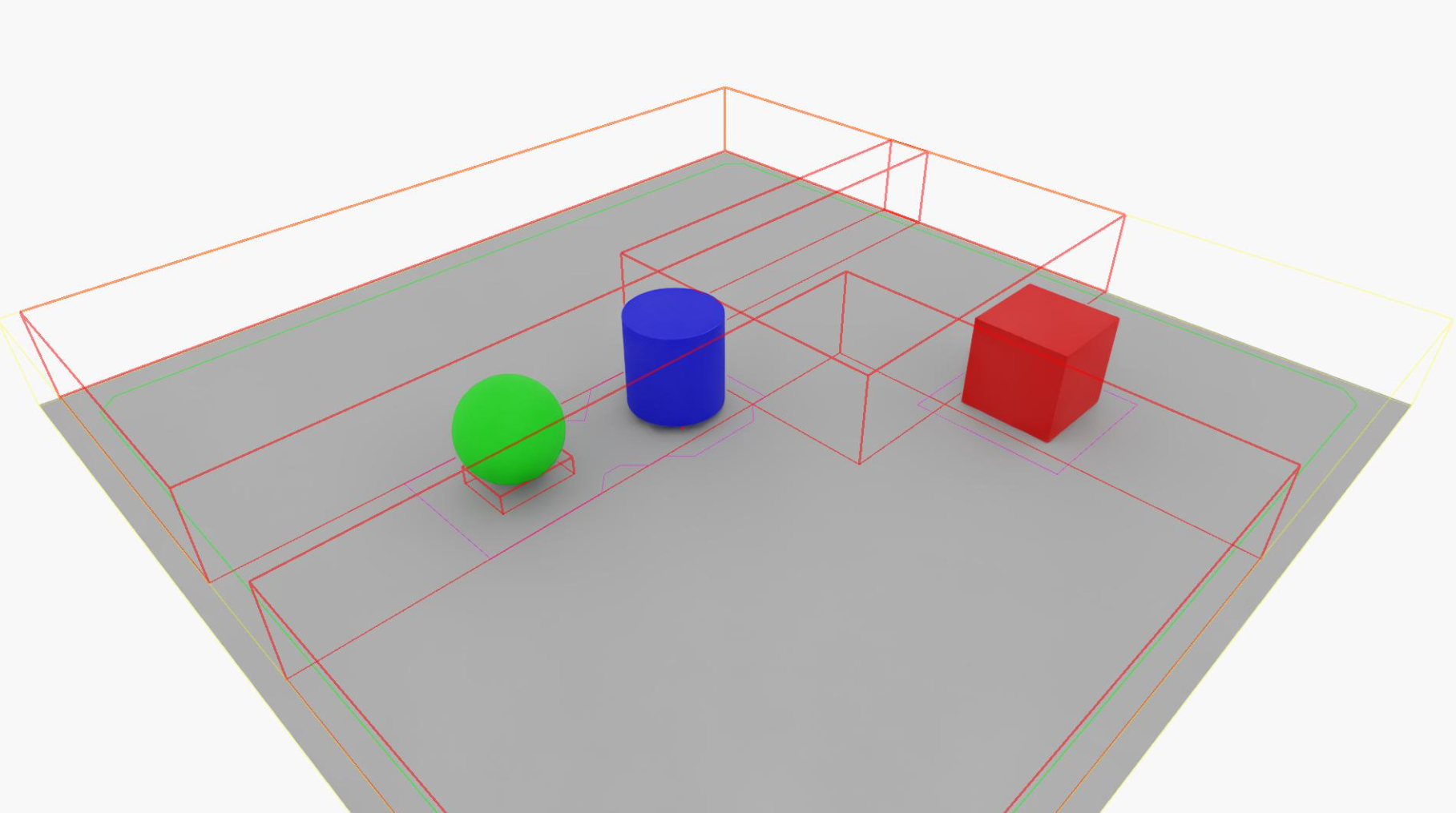

Viewport with demo_empty_space.yaml. The following colors appear in the viewport:

• Yellow wireframe: The detector scope.

• Red boxes: 3D empty-space results.

• Green outlines: 2D footprints.

When visualize_raycast is enabled, additional elements appear as described in the preceding legend:

• Yellow vertical segments: Raycast lines.

• Red and green span points: Height-span sample points.
