RTX Lidar Sensor#

../_images/isim_4.5_full_ref_viewport_rtx_lidar_warehouse.png

RTX Lidar sensors are simulated at render time on the GPU with RTX hardware. Their results are then copied to the RtxSensorCpu rendering buffer for use.

How They Work#

Before an RTX Lidar can render, there must be a camera prim with appropriately-set attributes. The render product from that camera will contain the RtxSensorCpu result.

The following code snippet, when run in the Script Editor, will:

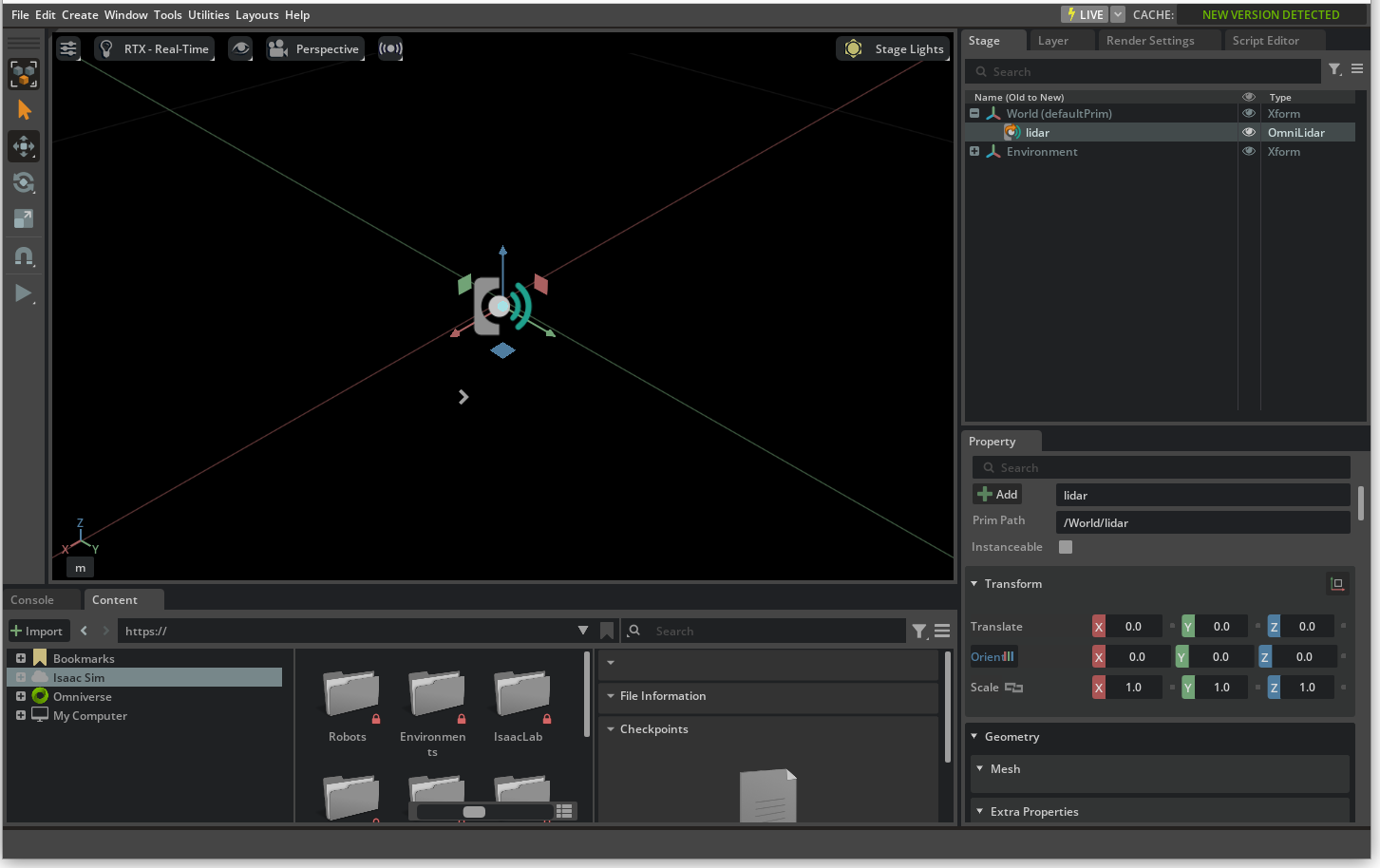

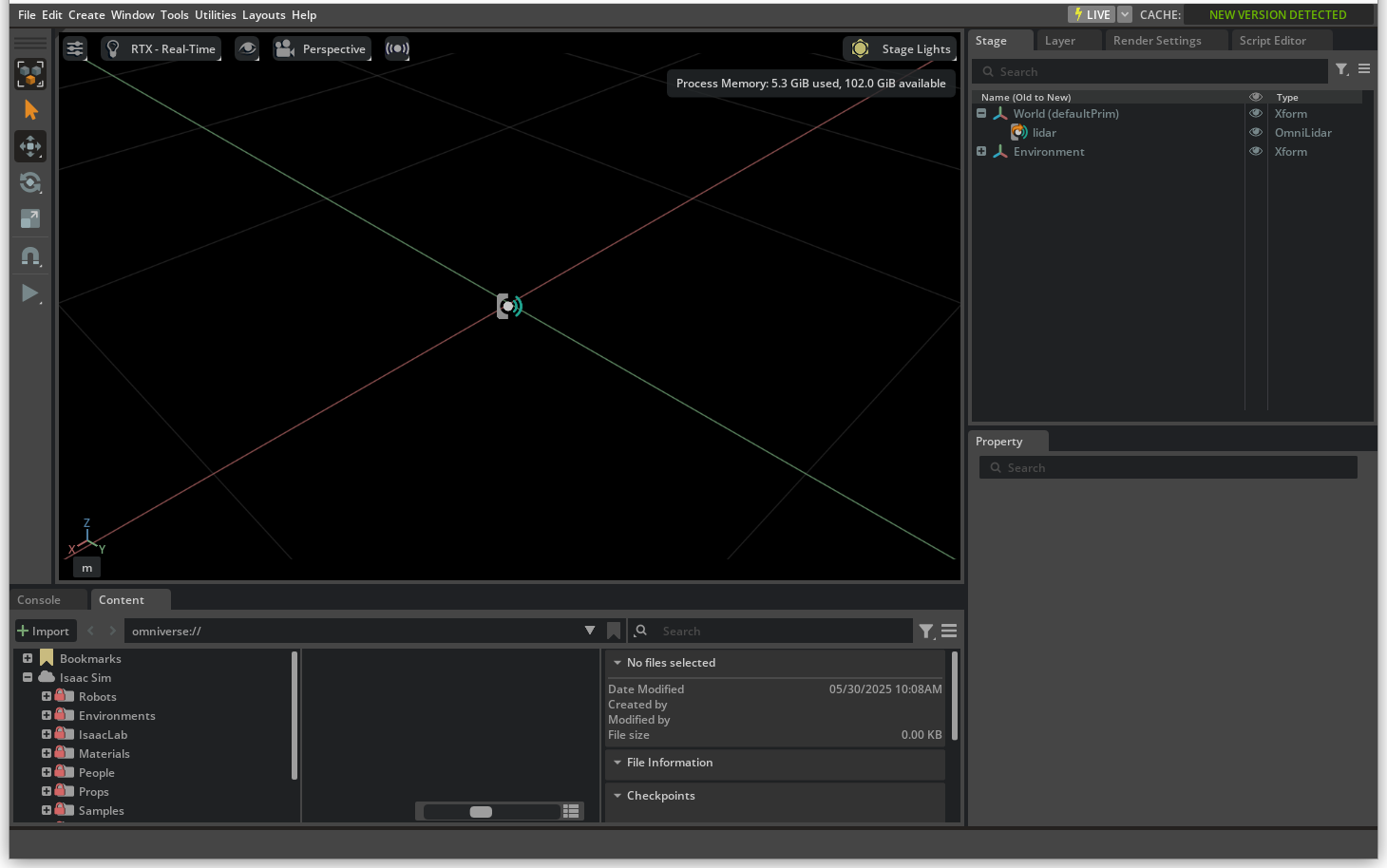

  1. Create a RTX Lidar sensor in the scene with the IsaacSensorCreateRtxLidar command.

  2. Render its results into a Hydra texture

  3. Create a point cloud from the results using the RtxLidarDebugDrawPointCloudBuffer writer

  4. Create a RtxSensorCpuIsaacCreateRTXLidarScanBuffer annotator that can read the data from the Lidar.

import omni.kit.commands
from pxr import Gf
import omni.replicator.core as rep
lidar_config = "Example_Rotary"

# 1. Create The Camera
_, sensor = omni.kit.commands.execute(
    "IsaacSensorCreateRtxLidar",
    path="/sensor",
    parent=None,
    config=lidar_config,
    translation=(0, 0, 1.0),
    orientation=Gf.Quatd(1,0,0,0),
)
# 2. Create and Attach a render product to the camera
render_product = rep.create.render_product(sensor.GetPath(), [1, 1])

# 3. Create Annotator to read the data from with annotator.get_data()
annotator = rep.AnnotatorRegistry.get_annotator("RtxSensorCpuIsaacCreateRTXLidarScanBuffer")
annotator.attach(render_product)

# 4. Create a Replicator Writer that "writes" points into the scene for debug viewing
writer = rep.writers.get("RtxLidarDebugDrawPointCloudBuffer")
writer.attach(render_product)

Creating and attaching the annotator and writer automatically generates an Action Graph to perform the debug view task; details about the Action Graph can be explored using the links below:

Lidar Config Files#

The config parameter points to a JSON file, described here that defines the behavior of the RTX Lidar. All the intrinsic parameters for the Lidar are stored in the config file. It is loaded when the sensor is created. Accordingly, the properties of an RTX Lidar, unlike most other prim properties in Isaac Sim, can’t be changed once the RTX Lidar is created.

The app.sensors.nv.lidar.profileBaseFolder setting in the ./exts/isaacsim.sensors.rtx/config/extension.toml file specifies search paths for the configuration file, and the first JSON file found with the name specified by config is used - so use unique names for your Lidar config files! There are several config files in ./exts/isaacsim.sensors.rtx/data/lidar_configs/; they are a good starting place for making your own. The app.sensors.nv.lidar.profileBaseFolder setting defaults to that location.

The Lidar Profile Parameters support Rotary and Solid State Lidars.

RTX Lidar Config Library#

A library of several pre-made Lidar config files are shipped with NVIDIA Isaac Sim. These are designed with a best guess approximation of the sensors from the publicly available manuals and web pages, unless otherwise noted. You will find the pre-made config files in the ./exts/isaacsim.sensors.rtx/data/lidar_configs/ folder, in a sub-folder named for the company that makes each Lidar model.

Manufacturer

Model

UI Name

Config Name

HESAI

PandarXT-32

PandarXT-32 10hz

Hesai_XT32_SD10

Ouster

OS0

OS0 128 10hz @ 512 resolution (Rev. 6)

OS0 128 10hz @ 1024 resolution (Rev. 6)

OS0 128 10hz @ 2048 resolution (Rev. 6)

OS0 128 20hz @ 512 resolution (Rev. 6)

OS0 128 20hz @ 1024 resolution (Rev. 6)

OS0 128 10hz @ 512 resolution (Rev. 7)

OS0 128 10hz @ 1024 resolution (Rev. 7)

OS0 128 10hz @ 2048 resolution (Rev. 7)

OS0 128 20hz @ 512 resolution (Rev. 7)

OS0 128 20hz @ 1024 resolution (Rev. 7)

OS0_REV6_128ch10hz512res

OS0_REV6_128ch10hz1024res

OS0_REV6_128ch10hz2048res

OS0_REV6_128ch20hz512res

OS0_REV6_128ch20hz1024res

OS0_REV7_128ch10hz512res

OS0_REV7_128ch10hz1024res

OS0_REV7_128ch10hz2048res

OS0_REV7_128ch20hz512res

OS0_REV7_128ch20hz1024res

Ouster

OS1

OS1 32 10hz @ 512 resolution (Rev. 6)

OS1 32 10hz @ 1024 resolution (Rev. 6)

OS1 32 10hz @ 2048 resolution (Rev. 6)

OS1 32 20hz @ 512 resolution (Rev. 6)

OS1 32 20hz @ 1024 resolution (Rev. 6)

OS1 128 10hz @ 512 resolution (Rev. 6)

OS1 128 10hz @ 1024 resolution (Rev. 6)

OS1 128 10hz @ 2048 resolution (Rev. 6)

OS1 128 20hz @ 512 resolution (Rev. 6)

OS1 128 20hz @ 1024 resolution (Rev. 6)

OS1 128 10hz @ 512 resolution (Rev. 7)

OS1 128 10hz @ 1024 resolution (Rev. 7)

OS1 128 10hz @ 2048 resolution (Rev. 7)

OS1 128 20hz @ 512 resolution (Rev. 7)

OS1 128 20hz @ 1024 resolution (Rev. 7)

OS1_REV6_32ch10hz512res

OS1_REV6_32ch10hz1024res

OS1_REV6_32ch10hz2048res

OS1_REV6_32ch20hz512res

OS1_REV6_32ch20hz1024res

OS1_REV6_128ch10hz512res

OS1_REV6_128ch10hz1024res

OS1_REV6_128ch10hz2048res

OS1_REV6_128ch20hz512res

OS1_REV6_128ch20hz1024res

OS1_REV7_128ch10hz512res

OS1_REV7_128ch10hz1024res

OS1_REV7_128ch10hz2048res

OS1_REV7_128ch20hz512res

OS1_REV7_128ch20hz1024res

Ouster

OS2

OS2 32 10hz @ 512 resolution (Rev. 6)

OS2 32 10hz @ 1024 resolution (Rev. 6)

OS2 32 10hz @ 2048 resolution (Rev. 6)

OS2 32 20hz @ 512 resolution (Rev. 6)

OS2 32 20hz @ 1024 resolution (Rev. 6)

OS2 32 10hz @ 512 resolution (Rev. 7)

OS2 32 10hz @ 1024 resolution (Rev. 7)

OS2 32 10hz @ 2048 resolution (Rev. 7)

OS2 32 20hz @ 512 resolution (Rev. 7)

OS2 32 20hz @ 1024 resolution (Rev. 7)

OS2_REV6_32ch10hz512res

OS2_REV6_32ch10hz1024res

OS2_REV6_32ch10hz2048res

OS2_REV6_32ch20hz512res

OS2_REV6_32ch20hz1024res

OS2_REV7_32ch10hz512res

OS2_REV7_32ch10hz1024res

OS2_REV7_32ch10hz2048res

OS2_REV7_32ch20hz512res

OS2_REV7_32ch20hz1024res

SICK

TiM781

SICK TiM781

SICK_tim781

SLAMTEC

RPLidar S2E

RPLidar S2E

RPLIDAR_S2E

Velodyne

VLS-128

Velodyne VLS-128

Velodyne_VLS128

ZVISION [*]

ML-30s+

ML-Xs

ML-30s+

ML-Xs

ZVISION_ML30S

ZVISION_MLXS

NVIDIA [†]

Generic

Generic

Debug

Rotating

Solid State

Simple Solid State

Example_Rotary

Example_Solid_State

Simple_Example_Solid_State

Note

The Lidar config JSON files are worth looking into, because many of them have comments in them detailing where the parameters came from, so if you need to make your own config file, or change existing ones, you will have an idea of why the values are set as they are.

Sensor Materials#

The material system for RTX Lidar allows content creators to assign sensor material types to partial material prim names on a USD stage. Lidar return behavior depends on material properties (eg. emissivity, reflectivity, etc.), as described below.

Standalone Examples#

For examples of creating RTX Lidar see the examples:

./python.sh standalone_examples/api/isaacsim.ros1.bridge/rtx_lidar.py

./python.sh standalone_examples/api/isaacsim.ros2.bridge/rtx_lidar.py

./python.sh standalone_examples/api/isaacsim.util.debug_draw/rtx_lidar.py Example_Rotary

./python.sh standalone_examples/api/isaacsim.util.debug_draw/rtx_lidar.py Example_Solid_State

Note

See the Isaac Sim Conventions documentation for a complete list of NVIDIA Isaac Sim conventions.
