PhysX SDK Lidar#

The PhysX SDK Lidar sensor in NVIDIA Isaac Sim uses PhysX SDK raycasts to simulate a Lidar. You can set horizontal and vertical beam resolution, rotation rate, and other Lidar parameters; the PhysX SDK Lidar will then report depth information from each beam. The PhysX SDK Lidar cannot interact with non-visual materials, it will always report ground truth information. For example, the Lidar will measure depth of a transparent object with respect to the Lidar, even if a beam would normally pass through the transparent object in real life.

See the Isaac Sim Conventions documentation for a complete list of NVIDIA Isaac Sim conventions.

GUI#

PhysX SDK Lidar Sensor Example#

To run the Example:

  1. Activate Robotics Examples tab from Windows > Examples > Robotics Examples.

  2. Click Robotics Examples > Sensors > Physx Lidar Sensor.

  3. Press the Load Sensor button.

  4. Press the Load Scene button.

  5. Press the Open Source Code button to view the source code. The source code illustrates how to add and control the sensor using the Python API.

  6. Press the PLAY button to begin simulating.

../_images/isim_4.5_full_tut_viewport_rotating_sensor.webp

Adding PhysX SDK Lidar Sensor to Simulation#

Scene Setup#

Let’s begin setting up the scene by creating a PhysicsScene and a PhysX Lidar in the environment:

  1. To create a Physics Scene, go to the top Menu Bar and Click Create > Physics > Physics Scene. There should now be a PhysicsScene Prim in the Stage panel on the right.

  2. To create a LIDAR, go to the top Menu Bar and Click Create > Sensors > PhysX Lidar > Rotating. Next, let’s set some of the LIDAR properties for rotation and visualization:

  3. Select the newly created LIDAR prim from the Stage panel.

  4. Once selected, the Property panel to the bottom left will populate with all the available properties of the LIDAR.

  5. Scroll down in the Property panel to the Raw USD Properties section.

  6. Enable the drawLines checkbox to enable line rendering.

  7. Set the revolutions per second to 1 Hz by setting rotationRate to 1.0.

    • To fire LIDAR rays in all directions at once, set the rotationRate to 0.0.

../_images/isim_4.5_full_tut_gui_rotating_sensor_2.webp

Note

You can update all of the Lidar parameters on the fly while the stage is running. When the rotation rate reaches zero or less, the Lidar prim will cast rays in all directions based on your FOV and resolution.

Setup Collision Detection#

The LIDAR can only detect objects with Collisions Enabled. Let’s add an object for the LIDAR to detect:

  1. Go to the top Menu Bar and Click Create > Mesh > Cube.

  2. Translate the cube to (2, 0, 0).

Next, add a Physics Collider to the Cube:

  1. With the Cube selected, go to the Property panel and click the + Add button.

  2. Select + Add > Physics > Collider.

../_images/isim_4.5_full_tut_viewport_rotating_sensor_3.webp

  • Use the mouse and move the Cube around the scene to see how the LIDAR rays interact with the geometry.

Attach a LIDAR to Geometry#

For most use cases, LIDARs will be attached to other more complex assemblies — such as cars or robots. Let’s learn how to attach a LIDAR to a parent geometry. We are going to use a Cylinder as a placeholder for a more complex prim. Add a Cylinder to the scene and nest the LIDAR prim under it:

  1. Right click in the viewport and select Create > Mesh > Cylinder.

  2. Set the translation of the Cylinder to (0, 0, 0).

  3. In the Stage panel, drag-and-drop the LIDAR prim onto the Cylinder.

  4. This makes the Cylinder the parent of the LIDAR. Now when the Cylinder moves, the LIDAR moves with it. Moreover, all information reported by the LIDAR is now relative to the Cylinder.

  5. Add a offset to LIDAR to precisely position it relative to the Cylinder. Select the LIDAR prim from the Stage and move it to (0.5, 0.5, 0).

  6. Now move the Cylinder around the environment. The LIDAR maintains this relative transform.

  7. Re-select the LIDAR prim and reset its Translate value to its default setting (0, 0, 0).

../_images/isim_4.5_full_tut_viewport_rotating_sensor_4.webp

Attach a LIDAR to a Moving Robot#

Similarly, you can attach a LIDAR prim to a robot. We will use the carter v1 robot as an example.

  1. Open the Isaac Sim Asset Browser, search carter_v1, select the carter_v1 robot, and click Open File

  2. Open the left wheel joint at carter/chassis_link/left_wheel, scroll down on the property panel, and set the Target Velocity to 100

  3. Repeat the same process for the right wheel joint at carter/chassis_link/right_wheel

  4. Press play and the Carter robot should drive forward automatically.

  5. Create a LIDAR, go to the top Menu Bar and Click Create > Sensors > PhysX LIDAR > Rotating. The LIDAR prim will be created as a child of the selected prim.

  6. In the Stage panel, select your LIDAR prim and drag it onto /carter/chassis_link

  7. Set the translation of the physx lidar to -0.06, 0.0, 0.38 to move it to the correct location

  8. Enable draw lines and set the rotation rate to zero for easier debugging

../_images/isim_4.5_full_tut_viewport_rotating_sensor_3.gif

Script Editor#

The LIDAR Python API is used to interact programmatically with a LIDAR through scripts and extensions. It can be used to create, control, and query the sensor through scripts and extensions. Let’s use the Script Editor and Python API to retrieve the data from the LIDAR’s last sweep:

  1. Go to the top menu bar and Click Window > Script Editor to open the Script Editor Window.

  2. Add the necessary imports:

1import omni                                                     # Provides the core omniverse APIs
2import asyncio                                                  # Used to run sample asynchronously to not block rendering thread
3from isaacsim.sensors.physx import _range_sensor                # Imports the python bindings to interact with Lidar sensor
4from pxr import UsdGeom, Gf, UsdPhysics                         # pxr usd imports used to create the cube

  1. Grab the Stage, Simulation Timeline, and LIDAR Interface:

 1stage = omni.usd.get_context().get_stage()                      # Used to access Geometry
 2timeline = omni.timeline.get_timeline_interface()               # Used to interact with simulation
 3lidarInterface = _range_sensor.acquire_lidar_sensor_interface() # Used to interact with the LIDAR
 4
 5# These commands are the Python-equivalent of the first half of this tutorial
 6omni.kit.commands.execute('AddPhysicsSceneCommand',stage = stage, path='/World/PhysicsScene')
 7lidarPath = "/LidarName"
 8result, prim = omni.kit.commands.execute(
 9            "RangeSensorCreateLidar",
10            path=lidarPath,
11            parent="/World",
12            min_range=0.4,
13            max_range=100.0,
14            draw_points=False,
15            draw_lines=True,
16            horizontal_fov=360.0,
17            vertical_fov=30.0,
18            horizontal_resolution=0.4,
19            vertical_resolution=4.0,
20            rotation_rate=0.0,
21            high_lod=False,
22            yaw_offset=0.0,
23            enable_semantics=False
24        )

  1. Create an obstacle for the LIDAR:

1CubePath = "/World/CubeName"                                    # Create a Cube
2cubeGeom = UsdGeom.Cube.Define(stage, CubePath)
3cubePrim = stage.GetPrimAtPath(CubePath)
4cubeGeom.AddTranslateOp().Set(Gf.Vec3f(2.0, 0.0, 0.0))        # Move it away from the LIDAR
5cubeGeom.CreateSizeAttr(1)                                    # Scale it appropriately
6collisionAPI = UsdPhysics.CollisionAPI.Apply(cubePrim)          # Add a Physics Collider to it

  1. Get the LIDAR data:

The Lidar needs a frame of simulation in order to get data for the first frame, so we will start the simulation by calling timeline.play and waiting for a frame to complete, and then pause simulation using timeline.pause() to populate the depth buffers in the Lidar. Because the simulation is running asynchronously with our script, we use asyncio and ensure_future to wait for our script to complete calling timeline.pause() is optional, data from the sensor can be gathered anytime while simulating.

 1async def get_lidar_param():                                    # Function to retrieve data from the LIDAR
 2    await omni.kit.app.get_app().next_update_async()            # wait one frame for data
 3    timeline.pause()                                            # Pause the simulation to populate the LIDAR's depth buffers
 4    depth = lidarInterface.get_linear_depth_data("/World"+lidarPath)
 5    zenith = lidarInterface.get_zenith_data("/World"+lidarPath)
 6    azimuth = lidarInterface.get_azimuth_data("/World"+lidarPath)
 7    print("depth", depth)                                       # Print the data
 8    print("zenith", zenith)
 9    print("azimuth", azimuth)
10timeline.play()                                                 # Start the Simulation
11asyncio.ensure_future(get_lidar_param())                        # Only ask for data after sweep is complete

  1. Run the full script:

Expand to display full code
 1# provides the core omniverse APIs
 2import omni
 3# used to run sample asynchronously to not block rendering thread
 4import asyncio
 5# import the python bindings to interact with Lidar sensor
 6from isaacsim.sensors.physx import _range_sensor
 7# pxr usd imports used to create cube
 8from pxr import UsdGeom, Gf, UsdPhysics
 9
10stage = omni.usd.get_context().get_stage()
11lidarInterface = _range_sensor.acquire_lidar_sensor_interface()
12timeline = omni.timeline.get_timeline_interface()
13omni.kit.commands.execute('AddPhysicsSceneCommand',stage = stage, path='/World/PhysicsScene')
14lidarPath = "/LidarName"
15result, prim = omni.kit.commands.execute(
16            "RangeSensorCreateLidar",
17            path=lidarPath,
18            parent="/World",
19            min_range=0.4,
20            max_range=100.0,
21            draw_points=False,
22            draw_lines=True,
23            horizontal_fov=360.0,
24            vertical_fov=30.0,
25            horizontal_resolution=0.4,
26            vertical_resolution=4.0,
27            rotation_rate=0.0,
28            high_lod=False,
29            yaw_offset=0.0,
30            enable_semantics=False
31        )
32
33CubePath = "/World/CubeName"
34cubeGeom = UsdGeom.Cube.Define(stage, CubePath)
35cubePrim = stage.GetPrimAtPath(CubePath)
36cubeGeom.AddTranslateOp().Set(Gf.Vec3f(2.0, 0.0, 0.0))
37cubeGeom.CreateSizeAttr(1)
38collisionAPI = UsdPhysics.CollisionAPI.Apply(cubePrim)
39async def get_lidar_param():
40    await omni.kit.app.get_app().next_update_async()
41    timeline.pause()
42    depth = lidarInterface.get_linear_depth_data("/World"+lidarPath)
43    zenith = lidarInterface.get_zenith_data("/World"+lidarPath)
44    azimuth = lidarInterface.get_azimuth_data("/World"+lidarPath)
45    print("depth", depth)
46    print("zenith", zenith)
47    print("azimuth", azimuth)
48timeline.play()
49asyncio.ensure_future(get_lidar_param())

You should view the following:

Segmented Lidar Point Cloud

Segment a Point Cloud#

This code snippet shows how to add semantic labels to the depth data for segmenting its resulting point cloud.

 1import omni                                                     # Provides the core omniverse APIs
 2import asyncio                                                  # Used to run sample asynchronously to not block rendering thread
 3from isaacsim.sensors.physx import _range_sensor                # Imports the python bindings to interact with Lidar sensor
 4from pxr import UsdGeom, Gf, UsdPhysics, Semantics              # pxr usd imports used to create cube
 5
 6stage = omni.usd.get_context().get_stage()                      # Used to access Geometry
 7timeline = omni.timeline.get_timeline_interface()               # Used to interact with simulation
 8lidarInterface = _range_sensor.acquire_lidar_sensor_interface() # Used to interact with the LIDAR
 9# These commands are the Python-equivalent of the first half of this tutorial
10omni.kit.commands.execute('AddPhysicsSceneCommand',stage = stage, path='/World/PhysicsScene')
11lidarPath = "/LidarName"
12# Create Lidar prim
13result, prim = omni.kit.commands.execute(
14            "RangeSensorCreateLidar",
15            path=lidarPath,
16            parent="/World",
17            min_range=0.4,
18            max_range=100.0,
19            draw_points=True,
20            draw_lines=False,
21            horizontal_fov=360.0,
22            vertical_fov=60.0,
23            horizontal_resolution=0.4,
24            vertical_resolution=0.4,
25            rotation_rate=0.0,
26            high_lod=True,
27            yaw_offset=0.0,
28            enable_semantics=True
29        )
30UsdGeom.XformCommonAPI(prim).SetTranslate((2.0, 0.0, 0.0))
31
32# Create a cube, sphere, add collision and different semantic labels
33primType = ["Cube", "Sphere"]
34for i in range(2):
35    prim = stage.DefinePrim("/World/"+primType[i], primType[i])
36    UsdGeom.XformCommonAPI(prim).SetTranslate((-2.0, -2.0 + i * 4.0, 0.0))
37    UsdGeom.XformCommonAPI(prim).SetScale((1, 1, 1))
38    collisionAPI = UsdPhysics.CollisionAPI.Apply(prim)
39
40    # Add semantic label
41    sem = Semantics.SemanticsAPI.Apply(prim, "Semantics")
42    sem.CreateSemanticTypeAttr()
43    sem.CreateSemanticDataAttr()
44    sem.GetSemanticTypeAttr().Set("class")
45    sem.GetSemanticDataAttr().Set(primType[i])
46
47# Get point cloud and semantic id for Lidar hit points
48async def get_lidar_param():
49    await asyncio.sleep(1.0)
50    timeline.pause()
51    pointcloud = lidarInterface.get_point_cloud_data("/World"+lidarPath)
52    semantics = lidarInterface.get_semantic_data("/World"+lidarPath)
53
54    print("Point Cloud", pointcloud)
55    print("Semantic ID", semantics)
56
57timeline.play()                                                 # Start the Simulation
58asyncio.ensure_future(get_lidar_param())                        # Only ask for data after sweep is complete

The main differences between this example and the previous are as follows:

  1. The LIDAR’s enable_semantics flag is set to True on creation (line 29).

  2. The Cube and Sphere prims are assigned different semantic labels (lines 41-46).

  3. get_point_cloud_data and get_semantic_data are used to retrieve the Point Cloud data and Semantic IDs (lines 52-53).

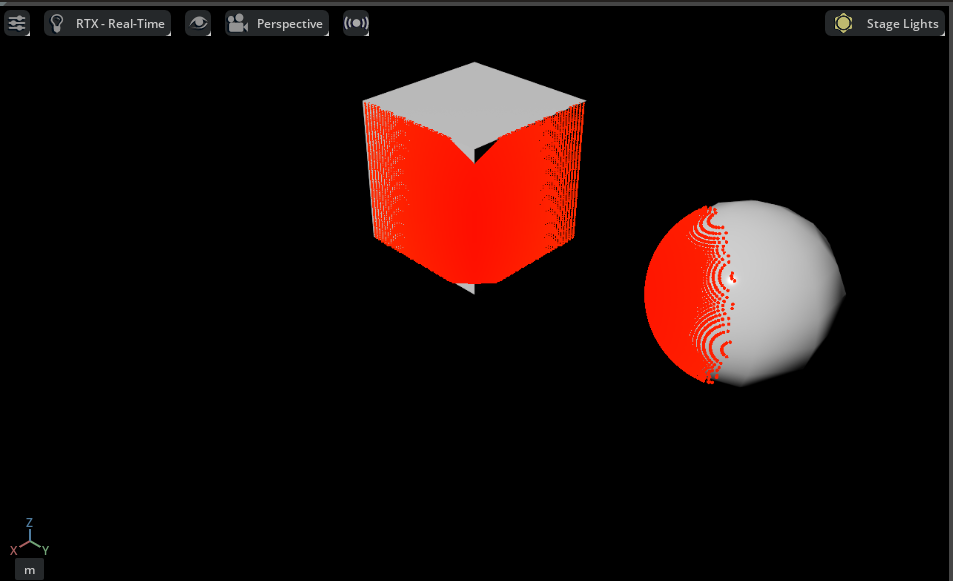

The segmented point cloud from Lidar sensor should look like the image below:

Segmented Lidar Point Cloud
