Livestream Clients#

This section shows you the methods of livestreaming a headless instance of Isaac Sim.

Note

  • Only one method of streaming can be used at a time for each Isaac Sim instance.

  • Only one client can access an Isaac Sim instance at a time.

  • To exit the Isaac Sim app remotely. Click the File menu, then click Exit in the streamed Isaac Sim app. Next, close the Isaac Sim WebRTC Streaming Client app.

  • Livestreaming is not supported when Isaac Sim is run on the A100 GPU. NVENC is not included in the A100.

  • By downloading or using the NVIDIA Isaac Sim WebRTC Streaming Client, you agree to the NVIDIA Isaac Sim WebRTC Streaming Client License Agreement.

Isaac Sim WebRTC Streaming Client#

Isaac Sim WebRTC Streaming Client is the recommended streaming client to view Isaac Sim remotely on your desktop or workstation without a powerful GPU.

  1. To use the Isaac Sim WebRTC Streaming Client, run Isaac Sim using one of the following methods:

See Workstation Installation

cd ~/isaacsim
./isaac-sim.streaming.sh

See Workstation Installation

cd C:\isaacsim
isaac-sim.streaming.bat

See Container Installation

cd /isaac-sim
./runheadless.sh

See Python Environment Installation

isaacsim isaacsim.exp.full.streaming --no-window

See Python Environment

./python.sh standalone_examples/api/isaacsim.simulation_app/livestream.py

  1. Make sure that the Isaac Sim app is loaded and ready. It can take a few minutes for Isaac Sim to be completely loaded the first time.

  2. To confirm this, look out for this line below in the console or the logs. This line may not appear when running using PIP or Python Sample.

Isaac Sim Full Streaming App is loaded.

  1. Download Isaac Sim WebRTC Streaming Client from the Latest Release section for your platform.

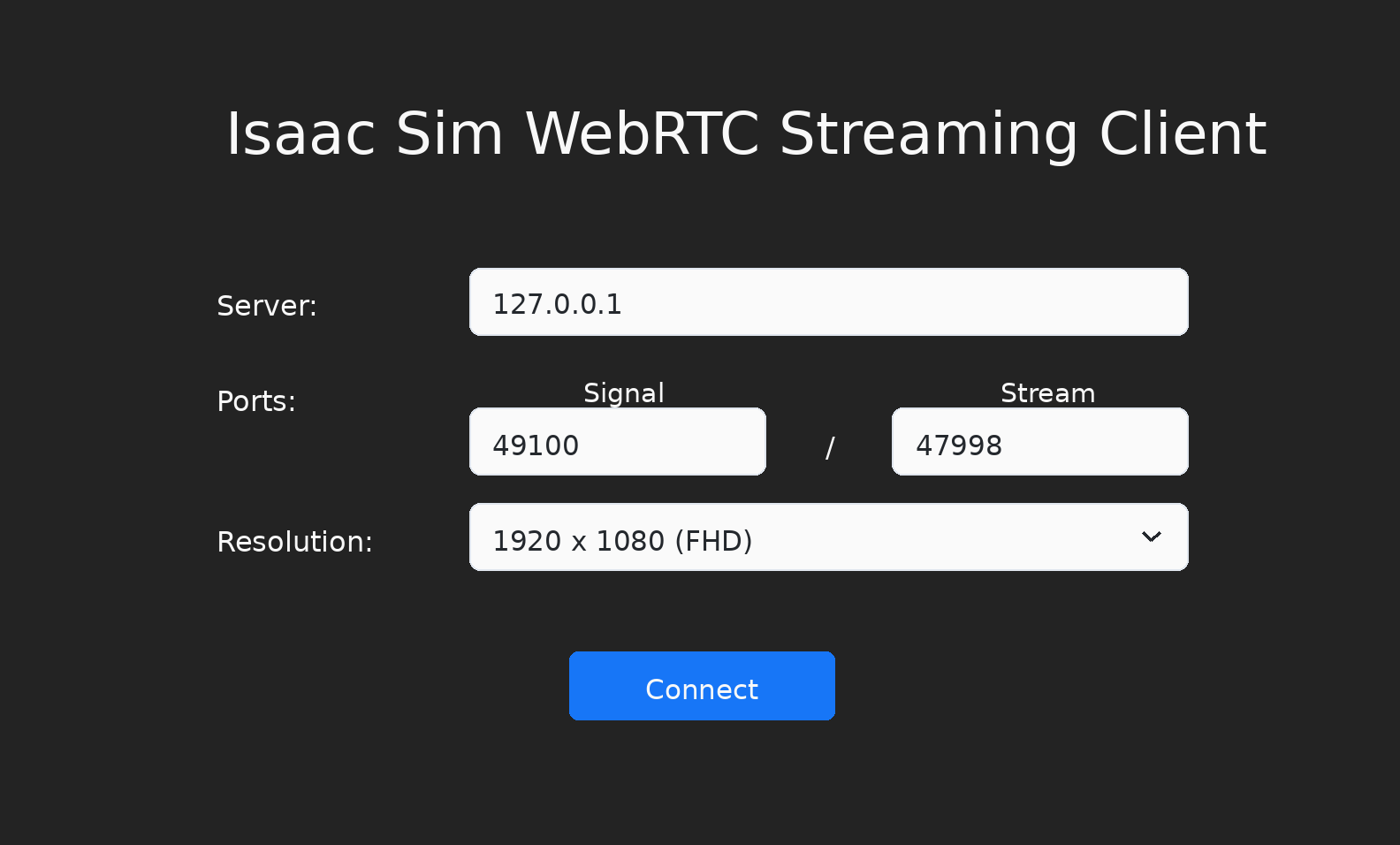

  2. Run the Isaac Sim WebRTC Streaming Client app.

../_images/isim_4.5_full_ref_gui_iswsc_1.0.6.png

  1. Use the default 127.0.0.1 IP address as the server to connect to a local instance of Isaac Sim.

  2. Click Connect

Note

  • Isaac Sim WebRTC Streaming Client is recommended to be used within the same network as an Isaac Sim headless instance.

  • To connect to a headless instance of Isaac Sim in the same network, replace 127.0.0.1 with the IP address of the machine running Isaac Sim.

  • On Linux:

    • In Terminal, run chmod +x *.AppImage to allow the app to be executable.

    • Double-click the AppImage file to run Isaac Sim WebRTC Streaming Client.

    • Note: libfuse2 is required to run on Ubuntu 22.04 or later. See Install FUSE 2.

  • On Mac:

    • Open the DMG file then click and drag the Isaac Sim WebRTC Streaming Client app to the Applications folder icon to install.

  • To reload the connection, click Reload in the View menu. This may be useful if you see a blank screen after some time.

../_images/isim_4.5_full_ref_gui_iswsc_1.0.6_reload.png

Omniverse Streaming Client [DEPRECATED]#

Warning

The Omniverse Streaming Client is deprecated.

Isaac Sim WebRTC Streaming Client is the recommended livestream client.

  1. To use the Omniverse Streaming Client, run Isaac Sim using one of the following methods:

See Workstation Installation

cd ~/isaacsim
./isaac-sim.old_streaming.sh

See Workstation Installation

cd C:\isaacsim
isaac-sim.old_streaming.bat

See Container Installation

cd /isaac-sim
./runoldstreaming.sh

  1. Make sure that the Isaac Sim app is loaded and ready. It can take a few minutes for Isaac Sim to be completely loaded the first time. To confirm this, look out for this line in the console or the logs:

Isaac Sim Full Streaming (DEPRECATED) App is loaded.

  1. Download Omniverse Streaming Client from the Latest Release section for your platform.

  2. Unzip the package and launch the omniverse-streaming-client app.

../_images/isim_4.5_full_ref_gui_ovsc_103.png

  1. Enter 127.0.0.1 as the server to connect to a local instance of Isaac Sim.

  2. Click Connect

Note

  • A GPU is required to use the Omniverse Streaming Client.

  • To connect to a headless instance of Isaac Sim in the same network, replace 127.0.0.1 with the IP address of the machine running Isaac Sim.

  • Each Isaac Sim instance can only connect to one Omniverse Streaming Client. Connecting to an Isaac Sim instance that is currently serving an Omniverse Streaming Client results in an error for the second user.

  • Errors may still be displayed in the logs even if running the Omniverse Streaming Client is successful. These messages are cleaned up later on. Right now, the logs are useful for debugging. See: Known Issues - Errors.

  • The 1280 x 720 (HD) resolution may not work for AWS EC2 instances.

  • Isaac Sim or the Omniverse Streaming Client may hang when shutting down from the File menu. See: Known Issues - Hang.

  • The following ports need to be opened: TCP/UDP 47995:48012, TCP/UDP 49000:49007, and TCP 49100.
