Mobile Robot Controllers#

Differential controller#

The differential controller uses the speed differential between the left and right wheels to control the robot’s linear and angular velocity. The differential robot enables the robot to turn in place and is used in the NVIDIA Nova Carter robot.

The Math#

\[ \begin{align}\begin{aligned}\omega_R &= \frac{1}{2r}(2V + \omega l_{tw})\\\omega_L &= \frac{1}{2r}(2V - \omega l_{tw})\end{aligned}\end{align} \]

where \(\omega\) is the desired angular velocity, \(V\) is the desired linear velocity, \(r\) is the radius of the wheels, and \(l_{tw}\) is the distance between them. \(\omega_R\) is the desired right wheel angular velocity and \(\omega_L\) is the desired left wheel angular velocity.

OmniGraph Node#

Differential Controller Omnigraph Inputs#
Input Commands	description
execIn	Input execution
wheelRadius	radius of the wheels
wheelDistance	distance between the wheels
dt	delta time
maxAcceleration	max linear acceleration for moving forward and reverse, 0.0 means not set
maxDeceleration	max linear breaking of the robot, 0.0 means not set
maxAngularAcceleration	max angular acceleration of the robot, 0.0 means not set
maxLinearSpeed	max linear speed allowed for the robot, 0.0 means not set
maxAngularSpeed	max angular speed allowed for the robot, 0.0 means not set
maxWheelSpeed	max wheel speed
Desired Linear Velocity	desired linear velocity
Desired Angular Velocity	desired angular velocity

Differential Controller Omnigraph Outputs#
Output Commands	description
VelocityCommand	velocity command for the left and right wheel

Python#

The code snippet below setups the differential controller for a robot with a wheel radius of 3 cm and a base of 11.25cm, with a linear speed of 0.3m/s and angular speed of 1.0rad/s.

from isaacsim.robot.wheeled_robots.controllers.differential_controller import DifferentialController

wheel_radius = 0.03
wheel_base = 0.1125
controller = DifferentialController("test_controller", wheel_radius, wheel_base)

linear_speed = 0.3
angular_speed = 1.0
command = [linear_speed, angular_speed]
actions = controller.forward(command)

Holonomic Controller#

The holonomic controller computes the joint drive commands required on omni-directional robots to produce the commanded forward, lateral, and yaw speeds of the robot. An example of a holonomic robot is the NVIDIA Kaya robot. The problem is framed as a quadratic program to minimize the residual “net force” acting on the center of mass.

Note

The wheel joints of the robot prim must have additional attributes to definine the roller angles and radii of the mecanum wheels.

stage = omni.usd.get_context().get_stage()
joint_prim = stage.GetPrimAtPath("/path/to/wheel_joint")
joint_prim.CreateAttribute("isaacmecanumwheel:radius",Sdf.ValueTypeNames.Float).Set(0.12)
joint_prim.CreateAttribute("isaacmecanumwheel:angle",Sdf.ValueTypeNames.Float).Set(10.3)

The HolonomicRobotUsdSetup class automates this process.

The Math#

The cost funciton is defined as the control input to the robot joints. By minimizing the control inputs, excess acceleration and be reduced.

\[J = min(X^T \cdot X)\]

The equality constrains are set by the linear and angular target velocity Inputs:

\[ \begin{align}\begin{aligned}v_{input} &= V^T \cdot X\\w_{input} &= (V \times D_{wheel dist to COM}) \cdot X\end{aligned}\end{align} \]

OmniGraph Node#

Holonomic Controller Omnigraph Inputs#
Input Commands	description
execIn	Input execution
wheelRadius	Array of wheel radius
wheelPositions	position of the wheel with respect to chassis’ center of mass
wheelOrientations	orientation of the wheel with respect to chassis’ center of mass frame
mecanumAngles	angles of the mecanum wheels with respect to wheel’s rotation axis
wheelAxis	the rotation axis of the wheels
upAxis	The up axis (default to z axis)
Velocity Commands for the vehicle	velocity in x and y and rotation
maxLinearSpeed	maximum speed allowed for the vehicle
maxAngularSpeed	maximum angular rotation speed allowed for the vehicles
maxWheelSpeed	maximum rotation speed allowed for the wheel joints
linearGain	gain for the linear velocity input
angularGain	gain for the angular input input

Holonomic Controller Omnigraph Outputs#
Output Commands	description
jointVelocityCommand	velocity command for the wheel joints

Python#

The code snippet below computes the joint velocity output for a three wheeled holonomic robot with command velocity of [1.0, 1.0, 0.1]

 from isaacsim.robot.wheeled_robots.controllers.holonomic_controller import HolonomicController

 wheel_radius = [0.04, 0.04, 0.04]
 wheel_orientations = [[0, 0, 0, 1], [0.866, 0, 0, -0.5], [0.866, 0, 0, 0.5]]
 wheel_positions = [
    [-0.0980432, 0.000636773, -0.050501],
    [0.0493475, -0.084525, -0.050501],
    [0.0495291, 0.0856937, -0.050501],
 ]
 mecanum_angles = [90, 90, 90]
 velocity_command = [1.0, 1.0, 0.1]

 controller = HolonomicController(
    "test_controller", wheel_radius, wheel_positions, wheel_orientations, mecanum_angles
 )
 actions = controller.forward(velocity_command)

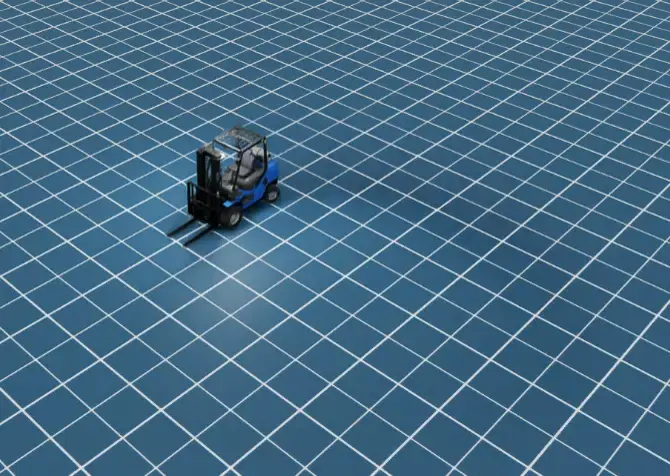

Ackermann Controller#

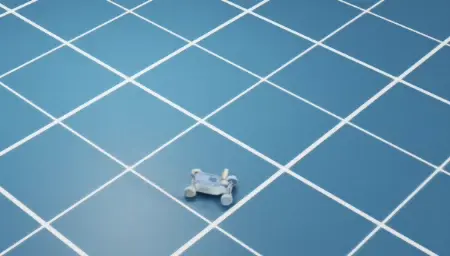

The ackeramnn controller is commonly used for robots with steerable wheels, an example of steerable robot is the NVIDIA leatherback robot. The ackeramnn controller in Isaac Sim will assume the desired steering angle and linear velocity is provided, and based on the robot geometry

The Math#

Compute the steering angle offset between the left and right steering wheels:

\[ \begin{align}\begin{aligned}R_{icr} &= \frac{l_{wb}}{tan(\theta_{steer})}\\\theta_L &= \arctan[\frac{l_{wb}}{R_{icr} - 0.5 * l_{tw}}]\\\theta_R &= \arctan[\frac{l_{wb}}{R_{icr} + 0.5 * l_{tw}}]\end{aligned}\end{align} \]

where \(R_{icr}\) is the radius to the instantaneous center of rotation, \(\theta_{steer}\) is the desired steering angle, \(l_{wb}\) is the distance between rear and front axles (wheel base), \(l_{tw}\) is the track width

Compute the individual wheel velocities (Forward steering case):

First step is to find the distance between the wheels and the instantaneous center of rotation.

\[ \begin{align}\begin{aligned}D_{front} &= \sqrt{ (R_{icr} \pm 0.5 l_{tw})^2 + (l_{wb})^2 }\\D_{rear} &= R_{icr} \pm 0.5 l_{tw}\end{aligned}\end{align} \]

Note

for \(\pm\), use \(-\) for the wheel closer to the \(R_{icr}\) and \(+\) for the wheel further to the \(R_{icr}\)

Then desired wheel velocity can be computed

\[ \begin{align}\begin{aligned}\omega_{front} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{front}}{r_{front}}\\\omega_{rear} &= \frac{V_{desired}}{R_{icr}} \cdot \frac{D_{rear}}{r_{rear}}\end{aligned}\end{align} \]

Where \(V_{desired}\) is the desired linear velocity, \(r_{front}\) is the desired front wheel radius, and \(r_{rear}\) is the desired rear wheel radius.

OmniGraph Node#

Ackermann Controller Omnigraph Inputs#
Input Commands	description
execIn	Input execution
acceleration	Desired forward acceleration for the robot in m/s^2
speed	Desired forward speed in m/s
steeringAngle	Desired steering angle in radians, by default it is positive for turning left for a front wheel drive
currentLinearVelocity	Current linear velocity of the robot in m/s
wheelBase	Distance between the front and rear axles of the robot in meters
trackWidth	Distance between the left and right rear wheels of the robot in meters
turningWheelRadius	Radius of the front wheels of the robot in meters
maxWheelVelocity	Maximum angular velocity of the robot wheel in rad/s
invertSteeringAngle	Flips the sign of the steering angle, Set to true for rear wheel steering
useAcceleration	Use acceleration as an input, Set to false to use speed as input instead
maxWheelRotation	Maximum angle of rotation for the front wheels in radians
dt	Delta time for the simulation step

Ackermann Controller Omnigraph Outputs#
Output Commands	description
execOut	Output execution
leftWheelAngle	Angle for the left turning wheel in radians
rightWheelAngle	Angle for the right turning wheel in radians
wheelRotationVelocity	Angular velocity for the turning wheels in rad/s

Python#

The python snippet below creates an ackerrmann controller for a robot with a wheel base of 1.65m, trackwidth of 1.25m, and wheel radius of 0.25m, sending it a desired forward velocity of 1.1 rad/s and steering angle of 0.1rad.

from isaacsim.robot.wheeled_robots.controllers.ackermann_controller import AckermannController

wheel_base = 1.65
track_width = 1.25
wheel_radius = 0.25
desired_forward_vel = 1.1  # rad/s
desired_steering_angle = 0.1  # rad

# Setting acceleration, steering velocity, and dt to 0 to instantly reach the target steering and velocity
acceleration = 0.0  # m/s^2
steering_velocity = 0.0  # rad/s
dt = 0.0  # secs

controller = AckermannController(
   "test_controller", wheel_base=wheel_base, track_width=track_width, front_wheel_radius=wheel_radius
)

actions = controller.forward(
      [desired_steering_angle, steering_velocity, desired_forward_vel, acceleration, dt]
)
