Multi-Tick Rendering

Multi-tick rendering decouples each sensor’s render rate from the main simulation frame rate. Instead of rendering every sensor every frame, each sensor ticks independently at its own configurable rate. This significantly improves performance in scenes with many sensors by avoiding redundant rendering work.

Multi-tick rendering is enabled by default in Isaac Sim 6.0 and later.

Overview

Before Isaac Sim-6.0, every camera and RTX sensor rendered at the simulation frame rate. With multi-tick rendering enabled, the renderer maintains independent tick counters for each sensor and only renders a sensor when its tick interval has elapsed.

The omni:sensor:tickRate attribute on each sensor prim controls the render frequency in Hz. A value of 0 (the default) puts the sensor in autotrigger mode, where it renders every frame, as if multi-tick rendering was disabled.

Performance Benefits

• Reduced GPU load: Sensors that do not need to update every frame skip rendering entirely, freeing GPU resources for other sensors or simulation work.

• Independent rates: A stereoscopic depth camera running at 60 Hz no longer forces a 30 Hz RGB camera to also render at the same rate.

• Better scaling: Scenes with many sensors (for example multi-robot fleets) see proportionally larger improvements because each sensor only consumes GPU time when it actually ticks.

Configuring Per-Sensor Tick Rates

Sensor tick rates are controlled by the omni::sensor::tickRate attribute in the OmniSensorAPI USD schema, which is applied to Camera and OmniLidar prims. The shipped USD assets in Isaac Sim 6.0 already have this schema applied with appropriate default tick rates.

Note

The OmniSensorAPI schema is also applied to OmniRadar prims, but in Isaac Sim 6.0 GA the RTX Radar renderer ignores omni:sensor:tickRate and always autotriggers. See RTX Radar autotriggers in 6.0 GA.

Using the Isaac Sim Extension API

The isaacsim.sensors.experimental.rtx extension provides Python APIs for authoring sensor prims and configuring their tick rates. For example, to author an OmniLidar prim at /World/Lidar with a tick rate of 10 Hz:

from isaacsim.sensors.experimental.rtx import Lidar

# Render the Lidar at 10 Hz independently of the simulation frame rate.
lidar = Lidar(path="/World/Lidar", tick_rate=10.0)

For cameras:

from isaacsim.sensors.experimental.rtx import RtxCamera

# Render the Camera at 30 Hz independently of the simulation frame rate.
camera = RtxCamera(path="/World/Camera", tick_rate=30.0)

Using OmniGraph

When using the ROS2, UCX, or HSB helper OmniGraph nodes, the sensor tick rate is read from the omni:sensor:tickRate attribute on the sensor prim. No additional node configuration is needed.

For a worked ROS2 example that scales sensor and graph publish rates with simulation frame rate, see ROS2 Setting Publish Rates.

OmniLidar Tick Rate Must Equal scanRateBaseHz

Warning

For OmniLidar prims, omni:sensor:tickRate must be set equal to omni:sensor:Core:scanRateBaseHz for scan accumulation and multi-tick rendering to behave correctly.

If the two values differ, the Lidar model falls back to producing partial scans every frame instead of accumulating to a full rotation (rotary Lidars) or full azimuth sweep (solid-state Lidars). Downstream pipelines that assume a full scan per tick - including ROS2 RTX Lidar Helper laser_scan publishers, IsaacComputeRTXLidarFlatScan, and any consumer of accumulated GenericModelOutput data - silently see truncated output. The renderer does not log an error in this case.

For example, the shipped Example_Rotary Lidar config has scanRateBaseHz = 10, so the sensor must tick at 10 Hz:

from isaacsim.sensors.experimental.rtx import Lidar

# Render at 10 Hz regardless of simulation frame rate.
lidar = Lidar.create("/World/Lidar", config="Example_Rotary", tick_rate=10.0)

The same constraint applies to Example_Solid_State and to vendor configs in RTX Lidars. When wrapping an existing OmniLidar prim, read omni:sensor:Core:scanRateBaseHz from the prim and pass that value as tick_rate.

Architecture: Timeline, Physics, and the Renderer

With multi-tick rendering enabled, three clocks advance independently per omni.kit.app update. This section explains what each clock is, how each one advances, and how they interact. Code that mixes omni.timeline time with physics or sensor time can produce inconsistent timestamps in some configurations, so these relationships matter when configuring deterministic simulations or interpreting sensor output.

The three clocks

Clock	Source of advance	Controlled by	Read by
Run-loop / omni.timeline time	Wall-clock dt per app update, or a fixed manual dt when set	RenderingManager.set_dt(...) (manual mode), /app/runLoops/main/rateLimitFrequency	Timeline UI, timeCodesPerSecond, stage update scheduling
Physics simulation time	Recomputed on every physics step as stepCount / stepsPerSecond	PhysicsScene.set_dt(...) or SimulationManager.setup_simulation(dt=...)	SimulationManager.get_simulation_time(), IsaacReadSimulationTime, ROS 2 / UCX / HSB timestamps
Renderer simulation time	Mirror of physics time, written to the Fabric prim /ExternalSimulationTime.omni:time after each physics step	Driven by isaacsim.core.simulation_manager; seeded by RenderingManager when the simulation manager is absent	The multi-tick renderer’s per-sensor tick scheduler at eHydraRendering

The renderer no longer reads omni.timeline to obtain the current simulation time; it reads the omni:time attribute on the /ExternalSimulationTime prim from Fabric. Physics writes that attribute on every onPhysicsStep callback at stage-update order -10, so the latest value is available to Hydra at order 30 within the same app update.

Per-frame ordering

For one App.update() with the timeline playing:

1. The run loop computes loop_dt (manual or wall-clock) and omni.timeline advances by loop_dt.

2. The physics stage-update phase runs N >= 0 substeps of physics_dt to catch the loop time. Each substep recomputes the physics simulation time and writes it to /ExternalSimulationTime.

3. Hydra reads /ExternalSimulationTime once. The per-sensor tick scheduler compares that value to each sensor’s last-rendered time and its omni:sensor:tickRate to decide which sensors render this frame.

4. OmniGraph nodes such as IsaacReadSimulationTime read the same simulation time, either directly or, when given a reference frame RationalTime, via interpolation from the TimeSampleStorage ring buffer maintained by isaacsim.core.simulation_manager.

Behavior depends on the ratio of physics_dt to loop_dt

Configuration	Physics steps per app update	End-of-frame /ExternalSimulationTime	Timeline vs physics time	Per-sensor ticking
physics_dt == loop_dt	1	Equal to loop time	Equal each frame	As scheduled
physics_dt < loop_dt	N >= 1	Equal to loop time within one substep	Equal each frame	As scheduled
physics_dt > loop_dt	0 or 1	Lags loop time by up to one physics_dt	Drifts within a physics step, resyncs when physics advances	Only on frames where /ExternalSimulationTime advanced

In the physics_dt <= loop_dt cases, multiple physics substeps in the same frame all write to /ExternalSimulationTime, but only the last value is what the renderer reads. TimeSampleStorage collapses these writes to a single sample per frame, keyed by the frame’s RationalTime, holding the cumulative physics time.

In the physics_dt > loop_dt case, frames where no physics step runs leave /ExternalSimulationTime unchanged. The render pipeline still runs every app update, but per-sensor tick counters do not advance and no sensor produces a new output on those frames. When physics finally steps, the prim jumps forward by physics_dt and due sensors render on that frame.

When useFixedTimeStepping=true (the full Isaac Sim GUI default)

The table above describes the substep-to-catch-up behavior that applies when /app/player/useFixedTimeStepping is false (the default in standalone Python). The full Isaac Sim GUI app sets this carb setting to true in source/apps/isaacsim.exp.full.kit. With it true, the timeline ignores the run-loop’s measured dt and forces dt = 1 / timeCodesPerSecond per accepted update inside Timeline::update(). Sensor and timeline time then advance at:

sim_advance_per_wall_sec  =  (1 / timeCodesPerSecond)  *  loop_hz_wall

Consequences:

• If loop_hz_wall == timeCodesPerSecond (the default 60 Hz on both), sim/wall = 1.0 and the system runs in real time. This is what isaacsim.core.rendering_manager.RenderingManager.set_dt() configures when called alone - it aligns rateLimitFrequency, targetFramerate, and timeCodesPerSecond to the same value.

• If loop_hz_wall < timeCodesPerSecond (e.g. the loop is rate-limited below the timeline’s per-tick rate), the simulation runs in slow motion at ratio loop_hz_wall / timeCodesPerSecond. RTX sensors gated by /ExternalSimulationTime publish proportionally slower; OnPlaybackTick-driven publishers (/clock, OmniGraph ticks) still fire at loop_hz_wall. This is the trap when users only set /app/runLoops/main/rateLimitFrequency without updating timeCodesPerSecond: physics step time and wall clock decouple in a non-obvious way.

• If loop_hz_wall > timeCodesPerSecond, the behavior depends on /app/player/useFastMode (also exposed as timeline.set_play_every_frame(...)):

  • ``useFastMode = false`` (the default): the timeline subsamples (advances time on every Nth run-loop tick where N = ceil(targetFramerate / timeCodesPerSecond)) so the timeline stays at its configured rate while the run loop ticks faster. This is used to drive higher render-product / OnPlaybackTick rates without speeding up sim time.

  • ``useFastMode = true`` (set when, for example, timeline.set_play_every_frame(True) is called - some Replicator examples and benchmarks do this): the subsample gate is bypassed. Every run-loop tick advances the timeline by 1 / timeCodesPerSecond, so sim time runs faster than wall time (fast-forward) at ratio loop_hz_wall / timeCodesPerSecond. This is the intended behavior for offline data generation where you want to ingest as much simulated time as possible per wall second, but it breaks any code that assumes sim time tracks wall time.

The reference example in Setting the Simulation Rate (Advanced) uses isaacsim.core.simulation_manager.SimulationManager.setup_simulation() plus isaacsim.core.rendering_manager.RenderingManager.set_dt() to keep all three clocks coherent - avoiding all of the above modes by construction. It leaves useFastMode at its default of false.

Practical implications

• Always read simulation time through SimulationManager.get_simulation_time(), IsaacReadSimulationTime, or the per-frame getSimulationTimeAtTime(rtime) lookup. These return the physics-driven value that the renderer also sees, so sensor stamps, TF stamps, and downstream consumers stay consistent.

• Do not use omni.timeline current time as a sensor or message timestamp. In the physics_dt > loop_dt configuration the two clocks drift each frame and only resync on physics steps, producing inconsistent stamps.

• To keep physics, the renderer, and downstream pipelines all advancing once per frame, set physics_dt == loop_dt via SimulationManager.setup_simulation(dt=1.0 / hz) and RenderingManager.set_dt(1.0 / hz). The isaacsim.exp.base.zero_delay.kit experience configures this and is the reference setup for deterministic single-frame TF / image pairing.

Settings Reference

The settings, APIs, and USD attributes below configure multi-tick rendering, per-sensor tick rates, and the underlying loop / physics clocks discussed in Architecture: Timeline, Physics, and the Renderer.

Setting / API / Attribute	Kind	Default	Effect
/rtx/hydra/supportMultiTickRate	carb setting	true	Enables multi-tick rendering. When false, the renderer reverts to per-frame rendering and does not consult /ExternalSimulationTime.
/rtx/rendering/perSensorTickTlas	carb setting	true	Builds a per-sensor Top-Level Acceleration Structure (TLAS) on each sensor tick instead of once per frame.
/app/player/playSimulations	carb setting	true	When false, App.update() does not step physics, so /ExternalSimulationTime is frozen even though omni.timeline may continue to advance. RenderingManager.render() toggles this around its update to render without ticking the simulation clock.
RenderingManager.set_dt(dt)	Python API	n/a	Sets loop_dt. Switches the Isaac loop runner to manual mode, sets /app/runLoops/main/rateLimitFrequency, and updates omni.timeline.set_target_framerate and the stage’s timeCodesPerSecond.
PhysicsScene.set_dt(dt) / SimulationManager.setup_simulation(dt=...)	Python API	1/60 s	Sets physics_dt on the physics scene. The physics engine uses an internal accumulator to decide how many substeps to take each app update.
RenderingManager.render()	Python API	n/a	Render the stage without stepping physics. Temporarily sets /app/player/playSimulations=false for one app update.
omni:sensor:tickRate (Hz)	USD attribute	0 (autotrigger)	Per-sensor render rate. Compared against /ExternalSimulationTime by the per-sensor tick scheduler. Applied to Camera and OmniLidar prims; ignored on OmniRadar in 6.0 GA (see RTX Radar autotriggers in 6.0 GA).
omni:sensor:Core:scanRateBaseHz (Hz)	USD attribute	Config-dependent (for example 10 for Example_Rotary)	OmniLidar scan rate. Must equal omni:sensor:tickRate - see OmniLidar Tick Rate Must Equal scanRateBaseHz.
omni:sensor:Core:accumulateOutputs	USD attribute	true	OmniLidar scan accumulation. When true, full scans accumulate over multiple frames; when false, the GMO carries the per-frame partial scan.

The /rtx/hydra/supportMultiTickRate and /rtx/rendering/perSensorTickTlas settings are configured in isaacsim.exp.base.kit and are also passed as standard test arguments to all extension tests.

Note

To reproduce the Isaac Sim 5.x render-every-frame behavior in 6.0 (for example to debug a regression), launch with --/rtx/hydra/supportMultiTickRate=false. Most other code paths in 6.0 assume the global default and have not been validated with the setting disabled.

Migration from Previous Releases

If you are upgrading from a release where multi-tick rendering was not enabled by default, the following changes may affect your workflow.

General changes

1. Update Camera and OmniSensor prims to work with multi-tick rendering. Apply the OmniSensorAPI schema to Camera prims. This schema is already applied by default to OmniLidar/OmniRadar prims. Set the omni:sensor:tickRate attribute to control render frequency. Multi-tick rendering is transparent when sensors use the default omni:sensor:tickRate of 0 (autotrigger), which renders every frame.

2. USD assets updated. Shipped sensor assets now have the OmniSensorAPI schema applied. If you have custom USD assets with Camera or OmniLidar/OmniRadar prims, apply the OmniSensorAPI schema and set omni:sensor:tickRate to control render frequency.

3. frameSkipCount is deprecated. Replace usage of frameSkipCount on ROS2/UCX/HSB helper nodes with omni:sensor:tickRate on the sensor prim. See frameSkipCount Deprecation below.

4. RTX Lidar accumulation moved to a USD attribute. Lidar scan accumulation is now controlled by the omni:sensor:Core:accumulateOutputs attribute on the OmniLidar prim. The deprecated isaacsim.sensors.rtx extension’s IsaacExtractRTXSensorPointCloudNoAccumulator annotator and its IsaacCreateRTXLidarScanBuffer and IsaacComputeRTXLidarFlatScan nodes have been updated to read this attribute. The newer IsaacExtractRTXSensorPointCloud annotator and OmniGraph node live in isaacsim.sensors.rtx.nodes and assume the GMO buffer already contains either a full scan or a per-frame partial scan based on accumulateOutputs.

5. Replace single-render-product waits with full app updates. The omni.syntheticdata.sensors.next_render_simulation_async helper (and any other helper that targets a single render product) does not advance per-sensor tick counters correctly under multi-tick rendering. Use isaacsim.core.experimental.utils.app.update_app_async instead, which performs full application update steps and ensures all sensor ticks are processed.

   Before:

   import omni.syntheticdata

   # Example values for an attached render product and a per-product wait count.
   render_product_path = "/Render/RenderProduct_Replicator"
   N = 1

   # Deprecated: does not advance per-sensor tick counters under multi-tick rendering.
   await omni.syntheticdata.sensors.next_render_simulation_async([render_product_path], N)


   After:

   import isaacsim.core.experimental.utils.app as app_utils

   # Number of full application update steps to perform.
   N = 1

   await app_utils.update_app_async(steps=N)


frameSkipCount Deprecation

In previous releases, publish rates for the ROS2 and UCX helper nodes were controlled by the frameSkipCount input on each helper node. This parameter is now deprecated.

With multi-tick rendering enabled globally, the correct way to control how often a sensor publishes data is to set omni:sensor:tickRate on the sensor prim itself. This is more efficient because the sensor does not render at all during skipped ticks, rather than rendering and discarding the output.

The frameSkipCount parameter still works for backward compatibility, but a deprecation warning is logged when a non-zero value is used. It will be removed in a future release.

The deprecation applies to every helper node that previously exposed frameSkipCount:

• ROS2 Camera Helper (isaacsim.ros2.bridge.ROS2CameraHelper)

• ROS2 Camera Info Helper (isaacsim.ros2.bridge.ROS2CameraInfoHelper)

• ROS2 RTX Lidar Helper (isaacsim.ros2.bridge.ROS2RtxLidarHelper)

• UCX Camera Helper (isaacsim.ucx.bridge.UCXCameraHelper)

The newer ROS2 RTX Radar Helper (isaacsim.ros2.bridge.ROS2RtxRadarHelper) was introduced after this deprecation and does not expose frameSkipCount at all.

Multi-tick scheduling migration

The table below lists 5.x rate-control inputs and the recommended 6.0 replacement for each sensor type. For the broader extension API migration (Kit-command-based sensor creation, class renames, annotator attach styles, GMO-helper changes), see RTX Sensors. For the deprecated isaacsim.sensors.camera extension, see Camera Sensors. For auxOutputType -> GenericModelOutput channels, see Auxiliary Output Level and the GenericModelOutput RenderVar.

Sensor type	5.x input	6.0 replacement	Notes
RTX Lidar	frameSkipCount on ROS2 RTX Lidar Helper	omni:sensor:tickRate on the OmniLidar prim	Must equal omni:sensor:Core:scanRateBaseHz. See OmniLidar Tick Rate Must Equal scanRateBaseHz.
RTX Lidar	fullScan input on ROS2 RTX Lidar Helper	omni:sensor:Core:accumulateOutputs on the OmniLidar prim	Helper input is now ignored and logs a deprecation warning when set to False.
Camera (ROS 2)	frameSkipCount on ROS2 Camera Helper / ROS2 Camera Info Helper	omni:sensor:tickRate on the Camera prim	Camera prim must have OmniSensorAPI applied. RtxCamera applies it automatically.
Camera (UCX)	frameSkipCount on UCX Camera Helper	omni:sensor:tickRate on the Camera prim	Helper still accepts frameSkipCount and logs a deprecation warning.

RTX Radar is intentionally omitted: omni:sensor:tickRate is ignored on OmniRadar in 6.0 GA (see RTX Radar autotriggers in 6.0 GA). Gate Radar publish rates downstream instead.

Known Issues

RTX Radar autotriggers in 6.0 GA

In Isaac Sim 6.0 GA, the RTX Radar renderer ignores omni:sensor:tickRate on OmniRadar prims and renders every simulation frame. Setting tick_rate on isaacsim.sensors.experimental.rtx.Radar has no effect on the actual render cadence; the attribute is still authored on the prim, but the multi-tick scheduler skips Radar prims. This is expected to be corrected in a future release.

The autotrigger limitation does not affect OmniLidar or Camera prims.

OmniLidar partial-scan fallback

If omni:sensor:tickRate is not equal to omni:sensor:Core:scanRateBaseHz on an OmniLidar prim, the sensor falls back to emitting partial scans every frame. See OmniLidar Tick Rate Must Equal scanRateBaseHz for details and the recommended remediation.

Radar + Lidar frames-in-flight race

A fatal crash from rtx.sensors.lidar.core.plugin may occur during the first 1-2 wall-clock seconds after starting simulation when a scene combines RTX Radar, RTX Lidar, and Motion BVH. The crash is caused by a timing-dependent race in the RTX sensor framework’s frames-in-flight (FIF) scheduling, where the Lidar’s per-frame trace begins before its sensor profile has been initialized. Affected configurations crash deterministically; unaffected hardware does not see the issue. The error appears as a floating-point exception inside LidarRotary::openTrace or, less commonly, a segmentation fault in the v3.0 sensor scheduler:

[Fatal] [carb.crashreporter-breakpad.plugin] Crashing: SIGFPE
at rtx.sensors.lidar.core.plugin::LidarRotary::openTrace

Once the simulation has been running for ~1-2 wall-clock seconds without crashing, the session is stable for the remainder of its lifetime.

Standalone Python workaround

In standalone Python workflows, delay creating the render product for the Radar and attaching any Annotators or Writers until after the frames-in-flight have stabilized. Construct the Lidars normally before timeline.play(), but construct only the Radar’s USD authoring object pre-play and defer the RadarSensor wrap until after a short warmup window:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": True, "enable_motion_bvh": True})

import carb
import numpy as np
import omni
from isaacsim.core.experimental.objects import Cube
from isaacsim.sensors.experimental.rtx import (
    Lidar,
    LidarSensor,
    Radar,
    RadarSensor,
    parse_generic_model_output_data,
)

Cube("/cube", sizes=2.0, positions=np.array([10.0, 0.0, 0.0]))

# Lidars: full wrap pre-play (USD prim + render product + annotators).
lidar_sensor_1 = LidarSensor(Lidar("/lidar_1"), annotators=["generic-model-output"])
lidar_sensor_2 = LidarSensor(Lidar("/lidar_2"), annotators=["generic-model-output"])

# Radar: USD authoring object only. Defer the RadarSensor wrap until after the
# Lidar frames-in-flight slots have stabilized post-play.
radar = Radar("/radar")

# Start playback and let the Lidars warm up for a few frames before wrapping
# the Radar. 5 frames is one full rotation of the default 3-slot
# frames-in-flight buffer plus a small margin; heavier scenes may need more.
timeline = omni.timeline.get_timeline_interface()
timeline.play()
for _ in range(5):
    simulation_app.update()

# Now safe to wrap the Radar. This call creates the Radar's render product and
# binds annotators - the operation that would open the FIF race window if done
# concurrently with Lidar attachment.
radar_sensor = RadarSensor(radar, annotators=["generic-model-output"])

# Continue running and verify every sensor is producing output.
for _ in range(60):
    simulation_app.update()

    for sensor, name in [
        (lidar_sensor_1, "lidar_1"),
        (lidar_sensor_2, "lidar_2"),
        (radar_sensor, "radar"),
    ]:
        data, _ = sensor.get_data("generic-model-output")
        gmo = parse_generic_model_output_data(data)
        carb.log_warn(f"{name}: numElements={gmo.numElements}")

timeline.stop()
simulation_app.close()

The 5-frame warmup is conservative: it is one full rotation of the default 3-slot frames-in-flight buffer plus a small margin. Heavier scenes may require a larger value.

OmniGraph workaround

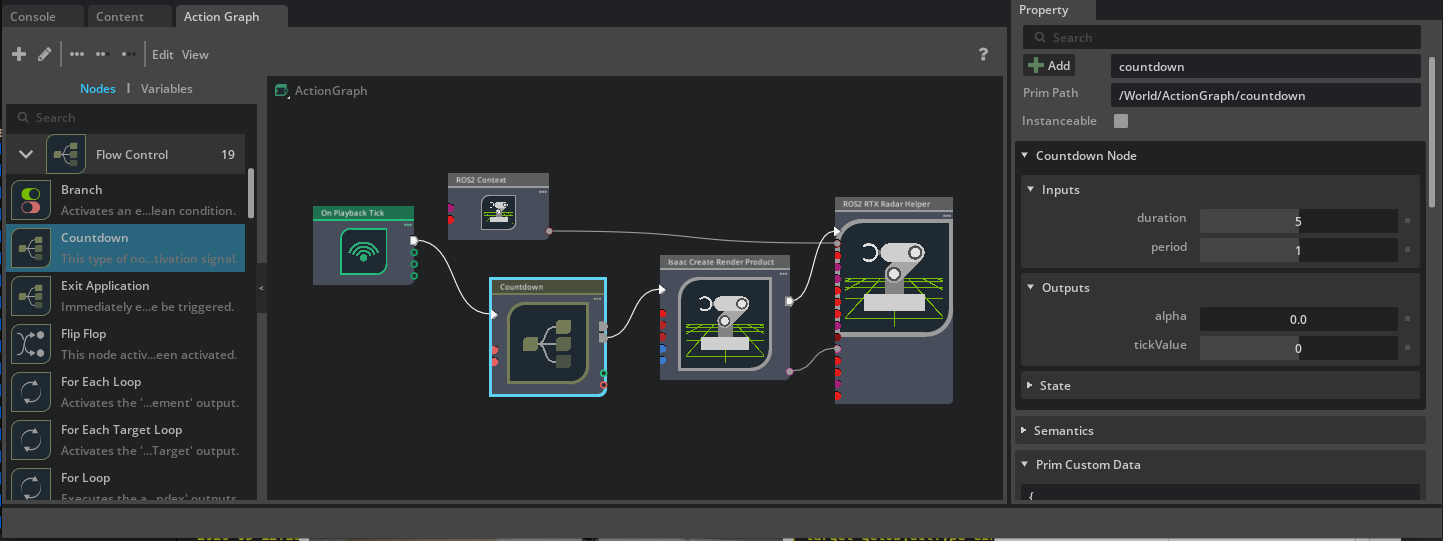

In OmniGraph workflows using the ROS2RtxRadarHelper node, you can stagger creating the Radar’s render product until after the Lidars have stabilized. Place an omni.graph.action.Countdown node between the OnPlaybackTick and the ROS2RtxRadarHelper node, setting its duration to 5 and its period to 1. The Countdown node’s finished output triggers downstream graph execution after duration ticks have elapsed, analogous to the 5-frame warmup in the standalone Python workflow. You may need to increase the duration value based on your scene’s complexity and your hardware configuration.
