Multiple Robot Scenarios#
Learning Objectives#
This tutorial describes how to create and manage multiple robot scenarios in NVIDIA Isaac Sim. It explains how to use parameterization and Python classes to scale your simulations with multiple instances of robots performing similar tasks. After this tutorial, you will have more experience building scalable multi-robot simulations in NVIDIA Isaac Sim.
15-20 Minute Tutorial
Getting Started#
Prerequisites
Review Adding Multiple Robots prior to beginning this tutorial.
Begin with the source code open from the previous tutorial, Adding Multiple Robots.
Note
Pressing STOP, then PLAY in this workflow might not reset the world properly. Use the RESET button instead.
Organizing Robot Scenarios with Classes#
When working with multiple robots performing similar tasks, it’s helpful to encapsulate the robot setup and control logic into reusable classes. This approach allows you to easily create multiple instances with different parameters (like position offsets).

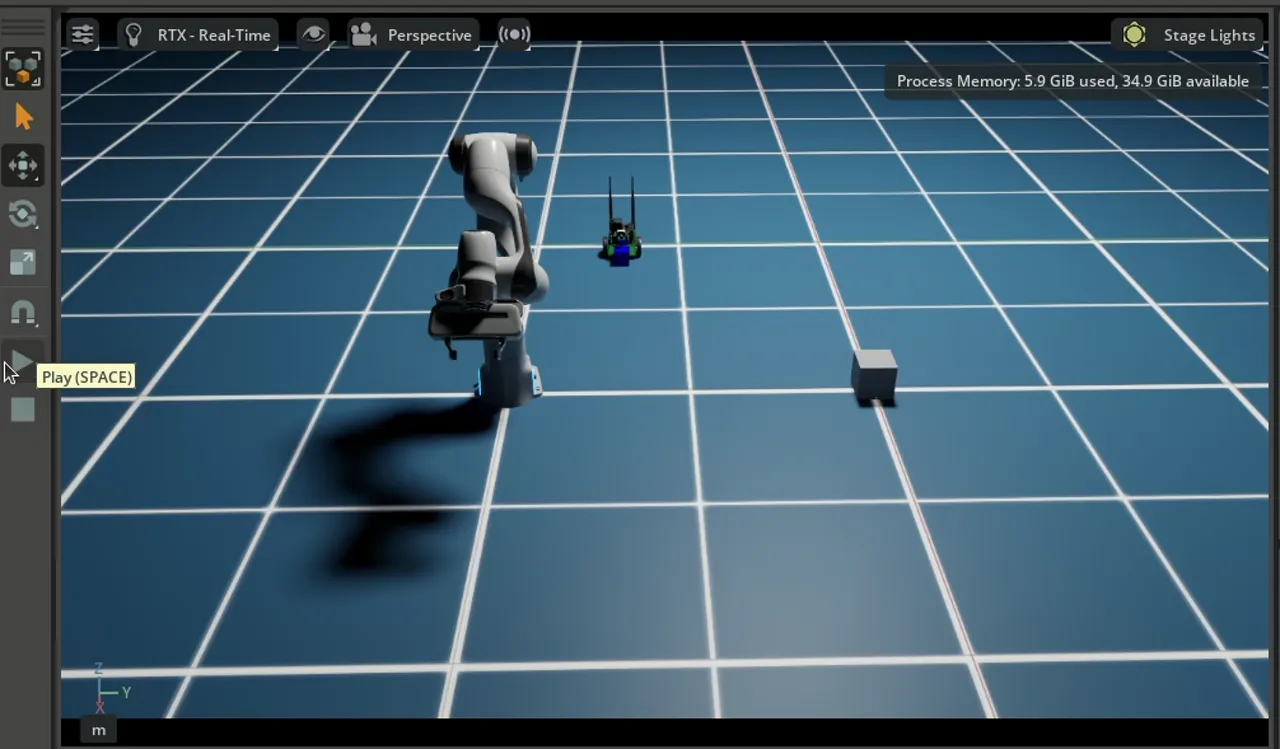

Create a RobotScenario class that manages a Jetbot pushing a cube to a Franka:
1import isaacsim.core.experimental.utils.stage as stage_utils
2import numpy as np
3from isaacsim.core.experimental.objects import Cube, DomeLight, GroundPlane
4from isaacsim.core.experimental.prims import Articulation, GeomPrim, RigidPrim, XformPrim
5from isaacsim.core.simulation_manager import SimulationEvent, SimulationManager
6from isaacsim.examples.base.base_sample_experimental import BaseSample
7from isaacsim.robot.experimental.manipulators.examples.franka import Franka
8from isaacsim.storage.native import get_assets_root_path
9
10
11class RobotScenario:
12 """Encapsulates a Jetbot + Franka + Cube scenario with an offset."""
13
14 def __init__(self, name: str, offset: np.ndarray = np.array([0.0, 0.0, 0.0])):
15 self.name = name
16 self.offset = offset
17 self.state = 0
18 self.step_counter = 0
19 self.pick_phase = 0
20 self.jetbot = None
21 self.franka = None
22 self.cube = None
23 self.cube_goal = np.array([1.2, 0.0, 0.0]) + offset
24
25 def setup_scene(self):
26 """Create the robots and cube for this scenario."""
27 assets_root_path = get_assets_root_path()
28 base_path = f"/World/{self.name}"
29
30 # Add Jetbot
31 stage_utils.add_reference_to_stage(
32 usd_path=assets_root_path + "/Isaac/Robots/NVIDIA/Jetbot/jetbot.usd",
33 path=f"{base_path}/Jetbot",
34 )
35 jetbot_xform = XformPrim(f"{base_path}/Jetbot")
36 jetbot_xform.reset_xform_op_properties()
37 jetbot_xform.set_world_poses(positions=self.offset.tolist())
38
39 # Add cube in front of Jetbot
40 cube_pos = self.offset + np.array([0.15, 0.0, 0.025])
41 cube_shape = Cube(
42 paths=f"{base_path}/Cube",
43 positions=cube_pos.tolist(),
44 sizes=1.0,
45 scales=[0.05, 0.05, 0.05],
46 colors="red",
47 )
48 GeomPrim(paths=cube_shape.paths, apply_collision_apis=True)
49 RigidPrim(paths=cube_shape.paths)
50
51 # Add Franka
52 franka_pos = self.offset + np.array([0.8, -0.3, 0.0])
53 self.franka = Franka(robot_path=f"{base_path}/Franka", create_robot=True)
54 franka_xform = XformPrim(f"{base_path}/Franka")
55 franka_xform.reset_xform_op_properties()
56 franka_xform.set_world_poses(positions=franka_pos.tolist())
57
58 def initialize(self):
59 """Initialize articulation handles after scene load."""
60 base_path = f"/World/{self.name}"
61 self.jetbot = Articulation(f"{base_path}/Jetbot")
62 self.cube = RigidPrim(f"{base_path}/Cube")
63
64 def reset(self):
65 """Reset the scenario state."""
66 self.state = 0
67 self.step_counter = 0
68 self.pick_phase = 0
69 self.franka.reset_to_default_pose()
70
71 def step(self):
72 """Execute one step of the scenario logic."""
73 if self.state == 0:
74 # Jetbot pushes cube
75 cube_pos = self.cube.get_world_poses()[0].numpy()[0]
76 if np.linalg.norm(cube_pos[:2] - self.cube_goal[:2]) > 0.05:
77 self.jetbot.set_dof_velocity_targets([10.0, 10.0])
78 else:
79 self.jetbot.set_dof_velocity_targets([0.0, 0.0])
80 self.state = 1
81 self.step_counter = 0
82
83 elif self.state == 1:
84 # Jetbot backs up
85 self.jetbot.set_dof_velocity_targets([-8.0, -8.0])
86 self.step_counter += 1
87 if self.step_counter > 100:
88 self.jetbot.set_dof_velocity_targets([0.0, 0.0])
89 self.state = 2
90 self.step_counter = 0
91 self.franka.open_gripper()
92
93 elif self.state == 2:
94 # Franka pick-and-place
95 self._franka_pick_place()
96
97 def _franka_pick_place(self):
98 """Execute Franka pick-and-place state machine."""
99 cube_pos = self.cube.get_world_poses()[0].numpy()[0]
100 down_orient = self.franka.get_downward_orientation()
101 self.step_counter += 1
102
103 if self.pick_phase == 0:
104 self.franka.set_end_effector_pose(np.array([cube_pos[0], cube_pos[1], cube_pos[2] + 0.2]), down_orient)
105 if self.step_counter > 120:
106 self.pick_phase = 1
107 self.step_counter = 0
108 elif self.pick_phase == 1:
109 self.franka.set_end_effector_pose(np.array([cube_pos[0], cube_pos[1], cube_pos[2] + 0.1]), down_orient)
110 if self.step_counter > 100:
111 self.pick_phase = 2
112 self.step_counter = 0
113 elif self.pick_phase == 2:
114 self.franka.close_gripper()
115 if self.step_counter > 100:
116 self.pick_phase = 3
117 self.step_counter = 0
118 elif self.pick_phase == 3:
119 _, current_position, _ = self.franka.get_current_state()
120 target = current_position + np.array([0.1, 0.0, 0.08])
121 self.franka.set_end_effector_pose(position=target, orientation=down_orient)
122 if self.step_counter > 150:
123 self.step_counter = 0
124 self.pick_phase = 4
125 elif self.pick_phase == 4:
126 _, current_position, _ = self.franka.get_current_state()
127 target = current_position + np.array([0.1, 0.0, 0.01])
128 self.franka.set_end_effector_pose(position=target, orientation=down_orient)
129 if self.step_counter > 150:
130 self.step_counter = 0
131 self.pick_phase = 5
132 elif self.pick_phase == 5:
133 self.franka.open_gripper()
134 if self.step_counter > 150:
135 self.step_counter = 0
136 self.state = 6 # Done
137
138
139class HelloWorld(BaseSample):
140 def __init__(self) -> None:
141 super().__init__()
142 self._physics_callback_id = None
143 self._scenarios = []
144
145 def setup_scene(self):
146 GroundPlane("/World/ground_plane")
147 dome_light = DomeLight("/World/DomeLight")
148 dome_light.set_intensities(1000)
149
150 # Create a single scenario
151 self._scenario = RobotScenario(name="scenario_0", offset=np.array([0.0, 0.0, 0.0]))
152 self._scenario.setup_scene()
153
154 async def setup_post_load(self):
155 self._scenario.initialize()
156
157 self._physics_callback_id = SimulationManager.register_callback(
158 self.physics_step, event=SimulationEvent.PHYSICS_POST_STEP
159 )
160
161 def physics_step(self, dt, context):
162 self._scenario.step()
163
164 async def setup_post_reset(self):
165 self._scenario.reset()
166
167 def physics_cleanup(self):
168 if self._physics_callback_id is not None:
169 SimulationManager.deregister_callback(self._physics_callback_id)
170 self._physics_callback_id = None
Scaling to Multiple Scenarios#
Adding the following operations:
Set number of scenarios:
1 self._num_scenarios = 3 # Number of parallel scenarios
Creating scenarios:
1 # Create multiple scenarios with Y-axis offsets
2 for i in range(self._num_scenarios):
3 offset = np.array([0.0, (i - 1) * 2.0, 0.0]) # Spread along Y-axis
4 scenario = RobotScenario(name=f"scenario_{i}", offset=offset, randomize=False)
5 scenario.setup_scene()
6 self._scenarios.append(scenario)
Initializing scenarios:
1 # Initialize all scenarios
2 for scenario in self._scenarios:
3 scenario.initialize()
Stepping all scenarios:
1 # Step all scenarios
2 for scenario in self._scenarios:
3 scenario.step()
Resetting all scenarios:
1 # Reset all scenarios
2 for scenario in self._scenarios:
3 scenario.reset()
Clean up:
1 self._scenarios = []
Complete code:
1import isaacsim.core.experimental.utils.stage as stage_utils
2import numpy as np
3from isaacsim.core.experimental.objects import Cube, DomeLight, GroundPlane
4from isaacsim.core.experimental.prims import Articulation, GeomPrim, RigidPrim, XformPrim
5from isaacsim.core.simulation_manager import SimulationEvent, SimulationManager
6from isaacsim.examples.base.base_sample_experimental import BaseSample
7from isaacsim.robot.experimental.manipulators.examples.franka import Franka
8from isaacsim.storage.native import get_assets_root_path
9
10
11class RobotScenario:
12 """Encapsulates a Jetbot + Franka + Cube scenario with an offset."""
13
14 def __init__(self, name: str, offset: np.ndarray = np.array([0.0, 0.0, 0.0]), randomize: bool = False):
15 self.name = name
16 self.offset = offset
17 self.state = 0
18 self.step_counter = 0
19 self.randomize = randomize
20 self.pick_phase = 0
21 self.jetbot = None
22 self.franka = None
23 self.cube = None
24 self.cube_goal = np.array([1.2, 0.0, 0.0]) + offset
25
26 # Randomize cube goal position if enabled
27 if self.randomize:
28 random_x = np.random.uniform(1.0, 1.6)
29 self.cube_goal = np.array([random_x, 0.0, 0.0]) + offset
30 else:
31 self.cube_goal = np.array([1.2, 0.0, 0.0]) + offset
32
33 def setup_scene(self):
34 """Create the robots and cube for this scenario."""
35 assets_root_path = get_assets_root_path()
36 base_path = f"/World/{self.name}"
37
38 # Add Jetbot
39 stage_utils.add_reference_to_stage(
40 usd_path=assets_root_path + "/Isaac/Robots/NVIDIA/Jetbot/jetbot.usd",
41 path=f"{base_path}/Jetbot",
42 )
43 jetbot_xform = XformPrim(f"{base_path}/Jetbot")
44 jetbot_xform.reset_xform_op_properties()
45 jetbot_xform.set_world_poses(positions=self.offset.tolist())
46
47 # Add cube in front of Jetbot
48 cube_pos = self.offset + np.array([0.15, 0.0, 0.025])
49 cube_shape = Cube(
50 paths=f"{base_path}/Cube",
51 positions=cube_pos.tolist(),
52 sizes=1.0,
53 scales=[0.05, 0.05, 0.05],
54 colors="red",
55 )
56 GeomPrim(paths=cube_shape.paths, apply_collision_apis=True)
57 RigidPrim(paths=cube_shape.paths)
58
59 # Add Franka
60 franka_pos = self.offset + np.array([0.8, -0.3, 0.0])
61 self.franka = Franka(robot_path=f"{base_path}/Franka", create_robot=True)
62 franka_xform = XformPrim(f"{base_path}/Franka")
63 franka_xform.reset_xform_op_properties()
64 franka_xform.set_world_poses(positions=franka_pos.tolist())
65
66 def initialize(self):
67 """Initialize articulation handles after scene load."""
68 base_path = f"/World/{self.name}"
69 self.jetbot = Articulation(f"{base_path}/Jetbot")
70 self.cube = RigidPrim(f"{base_path}/Cube")
71
72 def reset(self):
73 """Reset the scenario state."""
74 self.state = 0
75 self.step_counter = 0
76 self.pick_phase = 0
77 self.franka.reset_to_default_pose()
78
79 def step(self):
80 """Execute one step of the scenario logic."""
81 if self.state == 0:
82 # Jetbot pushes cube
83 cube_pos = self.cube.get_world_poses()[0].numpy()[0]
84 if np.linalg.norm(cube_pos[:2] - self.cube_goal[:2]) > 0.05:
85 self.jetbot.set_dof_velocity_targets([10.0, 10.0])
86 else:
87 self.jetbot.set_dof_velocity_targets([0.0, 0.0])
88 self.state = 1
89 self.step_counter = 0
90
91 elif self.state == 1:
92 # Jetbot backs up
93 self.jetbot.set_dof_velocity_targets([-8.0, -8.0])
94 self.step_counter += 1
95 if self.step_counter > 100:
96 self.jetbot.set_dof_velocity_targets([0.0, 0.0])
97 self.state = 2
98 self.step_counter = 0
99 self.franka.open_gripper()
100
101 elif self.state == 2:
102 # Franka pick-and-place
103 self._franka_pick_place()
104
105 def _franka_pick_place(self):
106 """Execute Franka pick-and-place state machine."""
107 cube_pos = self.cube.get_world_poses()[0].numpy()[0]
108 down_orient = self.franka.get_downward_orientation()
109 self.step_counter += 1
110
111 if self.pick_phase == 0:
112 self.franka.set_end_effector_pose(np.array([cube_pos[0], cube_pos[1], cube_pos[2] + 0.2]), down_orient)
113 if self.step_counter > 120:
114 self.pick_phase = 1
115 self.step_counter = 0
116 elif self.pick_phase == 1:
117 self.franka.set_end_effector_pose(np.array([cube_pos[0], cube_pos[1], cube_pos[2] + 0.1]), down_orient)
118 if self.step_counter > 100:
119 self.pick_phase = 2
120 self.step_counter = 0
121 elif self.pick_phase == 2:
122 self.franka.close_gripper()
123 if self.step_counter > 100:
124 self.pick_phase = 3
125 self.step_counter = 0
126 elif self.pick_phase == 3:
127 _, current_position, _ = self.franka.get_current_state()
128 target = current_position + np.array([0.1, 0.0, 0.08])
129 self.franka.set_end_effector_pose(position=target, orientation=down_orient)
130 if self.step_counter > 150:
131 self.step_counter = 0
132 self.pick_phase = 4
133 elif self.pick_phase == 4:
134 _, current_position, _ = self.franka.get_current_state()
135 target = current_position + np.array([0.1, 0.0, 0.01])
136 self.franka.set_end_effector_pose(position=target, orientation=down_orient)
137 if self.step_counter > 150:
138 self.step_counter = 0
139 self.pick_phase = 5
140 elif self.pick_phase == 5:
141 self.franka.open_gripper()
142 if self.step_counter > 150:
143 self.step_counter = 0
144 self.state = 6 # Done
145
146
147class HelloWorld(BaseSample):
148 def __init__(self) -> None:
149 super().__init__()
150 self._physics_callback_id = None
151 self._scenarios = []
152 # -- Begin setting scenario number -- #
153 self._num_scenarios = 3 # Number of parallel scenarios
154 # -- End of setting scenario number -- #
155
156 def setup_scene(self):
157 GroundPlane("/World/ground_plane")
158 dome_light = DomeLight("/World/DomeLight")
159 dome_light.set_intensities(1000)
160
161 # -- Begin creating scenarios -- #
162 # Create multiple scenarios with Y-axis offsets
163 for i in range(self._num_scenarios):
164 offset = np.array([0.0, (i - 1) * 2.0, 0.0]) # Spread along Y-axis
165 scenario = RobotScenario(name=f"scenario_{i}", offset=offset, randomize=False)
166 scenario.setup_scene()
167 self._scenarios.append(scenario)
168 # -- End of creating scenarios -- #
169
170 async def setup_post_load(self):
171 # -- Begin initializing scenarios -- #
172 # Initialize all scenarios
173 for scenario in self._scenarios:
174 scenario.initialize()
175 # -- End of initializing scenarios -- #
176
177 self._physics_callback_id = SimulationManager.register_callback(
178 self.physics_step, event=SimulationEvent.PHYSICS_POST_STEP
179 )
180
181 def physics_step(self, dt, context):
182 # -- Begin stepping scenarios -- #
183 # Step all scenarios
184 for scenario in self._scenarios:
185 scenario.step()
186 # -- End of stepping scenarios -- #
187
188 async def setup_post_reset(self):
189 # -- Begin resetting scenarios -- #
190 # Reset all scenarios
191 for scenario in self._scenarios:
192 scenario.reset()
193 # -- End of resetting scenarios -- #
194
195 def physics_cleanup(self):
196 if self._physics_callback_id is not None:
197 SimulationManager.deregister_callback(self._physics_callback_id)
198 self._physics_callback_id = None
199 # -- Begin remove all scenarios -- #
200 self._scenarios = []
201 # -- End of remove all scenarios -- #
Adding Randomization#
To make simulations more interesting, you can add randomization to the scenario parameters.
In the setup_scene method above, set randomize=True when creating each scenario:
1for i in range(self._num_scenarios):
2 offset = np.array([0.0, (i - 1) * 2.0, 0.0]) # Spread along Y-axis
3 scenario = RobotScenario(name=f"scenario_{i}", offset=offset, randomize=True)
4 scenario.setup_scene()
5 self._scenarios.append(scenario)
Best Practices for Scaling#
When creating large-scale multi-robot simulations:
Use unique paths: Each scenario should use unique USD prim paths to avoid conflicts. The
RobotScenarioclass uses the scenario name to create unique paths like/World/scenario_0/Jetbot.Manage state independently: Each scenario instance maintains its own state variables, allowing scenarios to progress independently.
Clean up properly: The
physics_cleanupmethod ensures callbacks are deregistered and scenario lists are cleared when the simulation is stopped.Consider performance: With many scenarios, consider reducing physics step frequency or using GPU-accelerated simulation for better performance.
Summary#
This tutorial covered the following topics:
Organizing robot scenarios into reusable Python classes
Using the
offsetparameter to position multiple scenarios in the worldScaling to multiple parallel scenarios with a simple loop
Adding randomization to scenario parameters
Best practices for managing multiple robot instances
