Scene Based Synthetic Dataset Generation

This tutorial illustrates the process of generating synthetic datasets using the omni.replicator extension. The resulting data is stored offline (on disk), making it readily available for training deep neural networks. The examples can be executed within the Isaac Sim Python standalone environment. The example uses Isaac Sim and Replicator to create synthetic datasets offline (on disk) for the training of machine learning models.

In this tutorial you:

• Utilize and set up external customizable config files (YAML/JSON) to adjust simulation and scenario parameters

• Load custom environments

• Spawn assets using the Isaac Sim API

• Run randomized physics simulations

• Register various Replicator randomization graphs

• Create cameras and render products with the Replicator API

• Use Replicator writers to save data to disk

Prerequisites

• Familiarity with the omni.replicator extension, including its annotators and writers.

• Basic understanding of Isaac Sim’s Stage and World concepts, further explained in the Hello World tutorial.

• Running simulations as Standalone Applications or via the Script Editor.

• Familiarity with Replicator randomizers and OmniGraph for a better understanding of the randomization pipeline.

Scenario

By default, the scenario is executed in a warehouse environment. Within this setting, a forklift is randomly placed in a designated area. Based on the forklift’s position, a pallet is placed in front of it at a randomized distance. Using Replicator’s scatter_2d randomization function with the collision check argument check_for_collisions set to True, the pallet is scattered with boxes, ensuring the boxes do not self-collide. The scatter graph node randomly scatters the boxes in each capture frame. Additionally, a traffic cone is randomly positioned at one of the bottom corners of the forklift’s oriented bounding box (OBB). Before the synthetic data generation (SDG) pipeline starts, a short physics simulation is executed, during which several boxes are dropped onto a pallet situated behind the forklift.

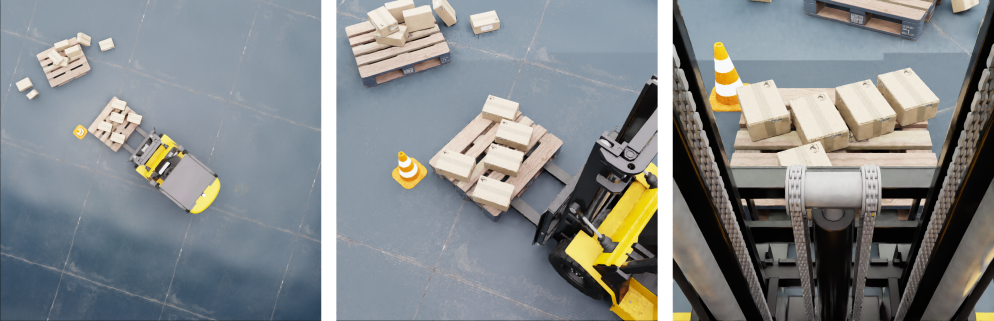

Three camera views are used for the synthetic data generation (SDG). The first (top_view_cam) offers a top-down view of the scenario (left), the second (pallet_cam) captures a randomized view of the boxes scattered on the pallet (center), and the third is overlooking the pallet from the driver’s place in the forklift using various heights (right). The data is collected using Replicator writers with configurable backends. The default setup uses BasicWriter with a DiskBackend. The writer’s config parameters are loaded from the writer_config entry and used to initialize the writer with annotators including rgb, semantic_segmentation, and bounding_box_3d. The output directory is specified in backend_params, which by default is <working_dir>/_out_scene_based_sdg.

Getting Started

The main script of the tutorial is located at <install_path>/standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py and it is set to run as a standalone application. The default configurations are stored in the script itself in the form of a Python dictionary, there is no need to provide a config file.

To overwrite the default configuration parameters, you can provided custom config files as a command-line argument for the script by using --config <path/to/file.json/yaml>. Example config files are stored in scene_based_sdg/config/*. In the provided examples, the configuration files serve as templates to illustrate and showcase the configurability of the script.

Helper functions are located in the scene_based_sdg_utils.py file.

To generate a synthetic dataset, run the following command for the Standalone Application:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py

Config Scenarios

The following provides details about the various config scenarios:

Built-in

Without an explicit config file, the script uses the default parameters stored in the script itself. The default parameters are the following:

Built-in (default) Config

config = {
    "launch_config": {
        "renderer": "RealTimePathTracing",
        "headless": False,
    },
    "resolution": [512, 512],
    "rt_subframes": 32,
    "num_frames": 10,
    "env_url": "/Isaac/Environments/Simple_Warehouse/full_warehouse.usd",
    "writer": "BasicWriter",
    "backend_type": "DiskBackend",
    "backend_params": {
        "output_dir": "_out_scene_based_sdg",
    },
    "writer_config": {
        "rgb": True,
        "bounding_box_2d_tight": True,
        "semantic_segmentation": True,
        "distance_to_image_plane": True,
        "bounding_box_3d": True,
        "occlusion": True,
    },
    "clear_previous_semantics": True,
    "forklift": {
        "url": "/Isaac/Props/Forklift/forklift.usd",
        "class": "forklift",
    },
    "cone": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/S_TrafficCone.usd",
        "class": "traffic_cone",
    },
    "pallet": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/SM_PaletteA_01.usd",
        "class": "pallet",
    },
    "cardbox": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/SM_CardBoxD_04.usd",
        "class": "cardbox",
    },
    "close_app_after_run": False,
}

The following command runs the script with the default parameters:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py

Basic Writer

Using the config_basic_writer.yaml config file explictly chooses BasicWriter with the given writer_config configurations. It also changes the environment to /Isaac/Environments/Grid/default_environment.usd.

Custom YAML Config

launch_config:
    renderer: RealTimePathTracing
    headless: false
resolution: [512, 512]
env_url: "/Isaac/Environments/Grid/default_environment.usd"
rt_subframes: 32
writer: BasicWriter
backend_type: DiskBackend
backend_params:
    output_dir: _out_basicwriter
writer_config:
    rgb: true

The following command runs the script with the custom parameters:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py \
    --config standalone_examples/replicator/scene_based_sdg/config/config_basic_writer.yaml

Default Writer

The config_default_writer.json uses the default writer (which is still the BasicWriter) and changes the writer_config values to rgb and instance_segmentation annotators.

Custom JSON Config

{
    "launch_config": {
        "renderer": "RealTimePathTracing",
        "headless": false
    },
    "resolution": [512, 512],
    "backend_type": "DiskBackend",
    "backend_params": {
        "output_dir": "_out_defaultwriter"
    },
    "writer_config": {
        "rgb": true,
        "instance_segmentation": true
    }
}

The following command runs the script with the custom parameters:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py \
    --config standalone_examples/replicator/scene_based_sdg/config/config_default_writer.json

Kitti Writer

The config_kitti_writer.yaml config file uses KittiWriter with the given writer_config configurations.

Custom YAML Config using KittiWriter

launch_config:
    renderer: RealTimePathTracing
    headless: true
resolution: [512, 512]
num_frames: 5
clear_previous_semantics: false
writer: KittiWriter
backend_type: null
writer_config:
    output_dir: _out_kitti
    colorize_instance_segmentation: true
    mapping_dict:
        forklift: [11, 110, 223, 255]
        pallet: [211, 210, 223, 255]

The following command runs the script with the custom parameters:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py \
    --config standalone_examples/replicator/scene_based_sdg/config/config_kitti_writer.yaml

Coco Writer

The config_coco_writer.yaml config file uses CocoWriter with the given writer_config configurations.

Custom YAML Config using CocoWriter

launch_config:
    renderer: RealTimePathTracing
    headless: true
resolution: [512, 512]
num_frames: 5
clear_previous_semantics: true
backend_type: null
writer: CocoWriter
writer_config:
    output_dir: _out_coco
    coco_categories:
        forklift:
            name: forklift
            id: 333
            supercategory: warehouse
            color: [211, 111, 211]
            isthing: 1
        pallet:
            name: pallet
            id: 313
            supercategory: warehouse
            color: [141, 111, 131]
            isthing: 1

The following command runs the script with the custom parameters:

./python.sh standalone_examples/replicator/scene_based_sdg/scene_based_sdg.py \
    --config standalone_examples/replicator/scene_based_sdg/config/config_coco_writer.yaml

For the Script Editor, run the following command:

Script Editor

import asyncio
import math
import os

import carb.settings
import numpy as np
import omni.kit.app
import omni.replicator.core as rep
import omni.usd
from isaacsim.core.experimental.prims import GeomPrim, RigidPrim
from isaacsim.core.experimental.utils.semantics import remove_all_labels
from isaacsim.core.simulation_manager import SimulationManager
from isaacsim.core.utils import prims
from isaacsim.core.utils.bounds import (
    compute_combined_aabb,
    compute_obb,
    create_bbox_cache,
    get_obb_corners,
)
from isaacsim.core.utils.rotations import euler_angles_to_quat, quat_to_euler_angles
from isaacsim.storage.native import get_assets_root_path_async
from pxr import Gf, Usd, UsdGeom

def setup_writer(config: dict) -> rep.Writer | None:
    """Setup and initialize writer with optional backend support."""

    def normalize_output_dir(params):
        if "output_dir" in params and not os.path.isabs(params["output_dir"]):
            params["output_dir"] = os.path.join(os.getcwd(), params["output_dir"])

    writer_type = config.get("writer", "BasicWriter")
    if writer_type not in rep.WriterRegistry.get_writers():
        print(f"[SDG] Writer type '{writer_type}' not found in registry.")
        return None

    writer = rep.WriterRegistry.get(writer_type)
    writer_kwargs = dict(config.get("writer_config", {}))
    normalize_output_dir(writer_kwargs)

    backend_type = config.get("backend_type")
    backend = None
    if backend_type:
        try:
            backend = rep.backends.get(backend_type)
        except Exception as e:
            print(f"[SDG] Backend '{backend_type}' not found: {e}")
            return None

        backend_params = dict(config.get("backend_params", {}))
        normalize_output_dir(backend_params)

        try:
            print(f"[SDG] Backend: {backend_type} | Params: {backend_params}")
            backend.initialize(**backend_params)
        except TypeError as e:
            print(f"[SDG] Invalid backend params: {e}")
            return None

    if "output_dir" in writer_kwargs:
        print(f"[SDG] Output: {writer_kwargs['output_dir']}")

    backend_info = f" + {backend_type}" if backend else ""
    print(f"[SDG] Writer: {writer_type}{backend_info} | Config: {writer_kwargs}")

    try:
        if backend:
            writer.initialize(backend=backend, **writer_kwargs)
        else:
            writer.initialize(**writer_kwargs)
    except TypeError as e:
        print(f"[SDG] Invalid writer params: {e}")
        return None

    return writer

async def simulate_falling_objects_async(
    forklift_prim: Usd.Prim,
    assets_root_path: str,
    config: dict,
    max_sim_steps: int = 250,
    num_boxes: int = 8,
    rng: np.random.Generator | None = None,
) -> None:
    """Run physics simulation to drop boxes on pallet near forklift."""
    if rng is None:
        rng = np.random.default_rng()

    forklift_transform = omni.usd.get_world_transform_matrix(forklift_prim)
    sim_pallet_offset = Gf.Matrix4d().SetTranslate(Gf.Vec3d(rng.uniform(-1, 1), rng.uniform(-4, -3.6), 0))
    sim_pallet_position = (sim_pallet_offset * forklift_transform).ExtractTranslation()
    sim_pallet_rotation = euler_angles_to_quat([0, 0, rng.uniform(0, math.pi)])

    sim_pallet = prims.create_prim(
        prim_path="/World/SimulatedPallet",
        position=sim_pallet_position,
        orientation=sim_pallet_rotation,
        usd_path=assets_root_path + config["pallet"]["url"],
        semantic_label=config["pallet"]["class"],
    )
    sim_pallet_geom = GeomPrim(f"{str(sim_pallet.GetPrimPath())}/.*", apply_collision_apis=True)
    sim_pallet_geom.set_collision_approximations("boundingCube")

    bbox_cache = create_bbox_cache()
    current_height = bbox_cache.ComputeLocalBound(sim_pallet).GetRange().GetSize()[2] * 1.1

    sim_box_rigid_prims = []
    for box_index in range(num_boxes):
        box_xy_offset = Gf.Vec3d(rng.uniform(-0.2, 0.2), rng.uniform(-0.2, 0.2), current_height)
        sim_box = prims.create_prim(
            prim_path=f"/World/SimulatedCardbox_{box_index}",
            position=sim_pallet_position + box_xy_offset,
            orientation=sim_pallet_rotation,
            usd_path=assets_root_path + config["cardbox"]["url"],
            semantic_label=config["cardbox"]["class"],
        )
        current_height += bbox_cache.ComputeLocalBound(sim_box).GetRange().GetSize()[2] * 1.1

        sim_box_geom = GeomPrim(f"{str(sim_box.GetPrimPath())}/.*", apply_collision_apis=True)
        sim_box_geom.set_collision_approximations("convexHull")
        sim_box_rigid_prims.append(RigidPrim(str(sim_box.GetPrimPath())))

    SimulationManager.set_physics_dt(1.0 / 90.0)
    SimulationManager.initialize_physics()

    velocity_threshold = 0.01
    for step in range(max_sim_steps):
        SimulationManager.step()
        if sim_box_rigid_prims:
            top_box_velocity = sim_box_rigid_prims[-1].get_velocities(indices=[0])[0].numpy()
            if np.linalg.norm(top_box_velocity) < velocity_threshold:
                print(f"[SDG] Simulation settled at step {step}")
                break
        await omni.kit.app.get_app().next_update_async()

def setup_camera_bounds(
    pallet_prim: Usd.Prim, forklift_prim: Usd.Prim, pallet_tf: Gf.Matrix4d, forklift_tf: Gf.Matrix4d
) -> dict[str, dict[str, tuple[float, float, float]]]:
    """Calculate camera randomization bounds for pallet, top view, and driver cameras."""
    pallet_pos = pallet_tf.ExtractTranslation()
    pallet_cam_bounds = {
        "min": (pallet_pos[0] - 2, pallet_pos[1] - 2, 2),
        "max": (pallet_pos[0] + 2, pallet_pos[1] + 2, 4),
    }

    forklift_pos = forklift_tf.ExtractTranslation()
    top_cam_bounds = {
        "min": (forklift_pos[0], forklift_pos[1], 9),
        "max": (forklift_pos[0], forklift_pos[1], 11),
    }

    driver_cam_pos = forklift_pos + Gf.Vec3d(0.0, 0.0, 1.9)
    driver_cam_bounds = {
        "min": (driver_cam_pos[0], driver_cam_pos[1], driver_cam_pos[2] - 0.25),
        "max": (driver_cam_pos[0], driver_cam_pos[1], driver_cam_pos[2] + 0.25),
    }

    return {
        "pallet_cam": pallet_cam_bounds,
        "top_cam": top_cam_bounds,
        "driver_cam": driver_cam_bounds,
    }

def create_scatter_plane_for_prim(
    prim: Usd.Prim, prim_tf: Gf.Matrix4d, parent_path: str, scale_factor: float = 0.8, visible: bool = False
) -> Usd.Prim:
    """Create scatter plane sized and aligned to prim surface."""
    bb_cache = create_bbox_cache()
    prim_bbox = bb_cache.ComputeLocalBound(prim)
    prim_bbox.Transform(prim_tf)
    prim_size = prim_bbox.GetRange().GetSize()

    prim_quat = prim_tf.ExtractRotation().GetQuaternion()
    prim_quat_xyzw = (prim_quat.GetReal(), *prim_quat.GetImaginary())
    prim_rotation_deg = quat_to_euler_angles(np.array(prim_quat_xyzw), degrees=True)

    prim_pos = prim_tf.ExtractTranslation()
    scatter_plane_scale = (prim_size[0] * scale_factor, prim_size[1] * scale_factor, 1)
    scatter_plane_pos = prim_pos + Gf.Vec3d(0, 0, prim_size[2])

    scatter_plane = rep.functional.create.plane(
        scale=scatter_plane_scale,
        position=tuple(scatter_plane_pos),
        rotation=tuple(prim_rotation_deg),
        visible=visible,
        parent=parent_path,
    )

    return scatter_plane

def setup_cone_placement_corners(
    forklift_prim: Usd.Prim, bb_cache=None, scale_factor: float = 1.3
) -> tuple[list[list[float]], tuple[float, float, float]]:
    """Calculate forklift OBB corners for cone placement."""
    if bb_cache is None:
        bb_cache = create_bbox_cache()

    forklift_obb_center, forklift_obb_axes, forklift_obb_extent = compute_obb(
        bb_cache, forklift_prim.GetPrimPath()
    )
    enlarged_extent = (
        forklift_obb_extent[0] * scale_factor,
        forklift_obb_extent[1] * scale_factor,
        forklift_obb_extent[2],
    )
    forklift_obb_corners = get_obb_corners(forklift_obb_center, forklift_obb_axes, enlarged_extent)

    cone_placement_corners = [
        forklift_obb_corners[0].tolist(),
        forklift_obb_corners[2].tolist(),
        forklift_obb_corners[4].tolist(),
        forklift_obb_corners[6].tolist(),
    ]

    forklift_obb_quat = Gf.Matrix3d(forklift_obb_axes).ExtractRotation().GetQuaternion()
    forklift_obb_quat_xyzw = (forklift_obb_quat.GetReal(), *forklift_obb_quat.GetImaginary())
    forklift_rotation_deg = quat_to_euler_angles(np.array(forklift_obb_quat_xyzw), degrees=True)

    return cone_placement_corners, forklift_rotation_deg

def register_lights_graph_randomizer(forklift_prim: Usd.Prim, pallet_prim: Usd.Prim, event_name: str) -> None:
    """Register graph randomizer for sphere lights."""
    bb_cache = create_bbox_cache()
    combined_bounds = compute_combined_aabb(bb_cache, [forklift_prim.GetPrimPath(), pallet_prim.GetPrimPath()])
    light_pos_min = (combined_bounds[0], combined_bounds[1], 6)
    light_pos_max = (combined_bounds[3], combined_bounds[4], 7)

    with rep.trigger.on_custom_event(event_name):
        rep.create.light(
            light_type="Sphere",
            color=rep.distribution.uniform((0.2, 0.1, 0.1), (0.9, 0.8, 0.8)),
            intensity=rep.distribution.uniform(2000, 4000),
            position=rep.distribution.uniform(light_pos_min, light_pos_max),
            scale=rep.distribution.uniform(1, 4),
            count=3,
        )

def register_cardboxes_materials_graph_randomizer(
    cardboxes: list[Usd.Prim], cardbox_material_urls: list[str], event_name: str
) -> None:
    """Register graph randomizer for cardbox materials."""
    cardbox_mesh_paths = []
    for cardbox in cardboxes:
        meshes = [child for child in cardbox.GetChildren() if child.IsA(UsdGeom.Mesh)]
        cardbox_mesh_paths.extend([mesh.GetPrimPath() for mesh in meshes])

    with rep.trigger.on_custom_event(event_name):
        cardbox_mesh_group_node = rep.create.group(cardbox_mesh_paths)
        with cardbox_mesh_group_node:
            rep.randomizer.materials(cardbox_material_urls)

async def run_example_async(config):
    assets_root_path = await get_assets_root_path_async()
    if assets_root_path is None:
        print("[SDG] Could not get nucleus server path")
        return

    # Load environment stage
    env_url = config.get("env_url", "/Isaac/Environments/Grid/default_environment.usd")
    env_path = env_url if env_url.startswith("omniverse://") else assets_root_path + env_url
    print(f"[SDG] Loading Stage {env_url}")
    omni.usd.get_context().open_stage(env_path)
    stage = omni.usd.get_context().get_stage()

    await omni.kit.app.get_app().next_update_async()

    # Initialize randomization
    rep.set_global_seed(42)
    rng = np.random.default_rng(42)

    # Configure replicator for manual triggering
    rep.orchestrator.set_capture_on_play(False)

    # Set DLSS to Quality mode for best SDG results
    carb.settings.get_settings().set("rtx/post/dlss/execMode", 2)

    # Clear previous semantic labels
    if config.get("clear_previous_semantics", True):
        for prim in stage.Traverse():
            remove_all_labels(prim, include_descendants=True)

    # Create SDG scope for organizing all generated objects
    sdg_scope = stage.DefinePrim("/SDG", "Scope")

    # Spawn forklift at random pose
    forklift_prim = prims.create_prim(
        prim_path="/SDG/Forklift",
        position=(rng.uniform(-20, -2), rng.uniform(-1, 3), 0),
        orientation=euler_angles_to_quat([0, 0, rng.uniform(0, math.pi)]),
        usd_path=assets_root_path + config["forklift"]["url"],
        semantic_label=config["forklift"]["class"],
    )

    # Spawn pallet in front of forklift with random offset
    forklift_tf = omni.usd.get_world_transform_matrix(forklift_prim)
    pallet_offset_tf = Gf.Matrix4d().SetTranslate(Gf.Vec3d(0, rng.uniform(-1.8, -1.2), 0))
    pallet_pos = (pallet_offset_tf * forklift_tf).ExtractTranslation()
    forklift_quat = forklift_tf.ExtractRotationQuat()
    forklift_quat_xyzw = (forklift_quat.GetReal(), *forklift_quat.GetImaginary())

    pallet_prim = prims.create_prim(
        prim_path="/SDG/Pallet",
        position=pallet_pos,
        orientation=forklift_quat_xyzw,
        usd_path=assets_root_path + config["pallet"]["url"],
        semantic_label=config["pallet"]["class"],
    )

    # Create cardboxes for pallet scattering
    cardboxes = []
    for i in range(5):
        cardbox = prims.create_prim(
            prim_path=f"/SDG/CardBox_{i}",
            usd_path=assets_root_path + config["cardbox"]["url"],
            semantic_label=config["cardbox"]["class"],
        )
        cardboxes.append(cardbox)

    # Create traffic cone for corner placement
    cone = prims.create_prim(
        prim_path="/SDG/Cone",
        usd_path=assets_root_path + config["cone"]["url"],
        semantic_label=config["cone"]["class"],
    )

    # Create cameras
    rep.functional.create.scope(name="Cameras", parent="/SDG")
    driver_cam = rep.functional.create.camera(
        focus_distance=400.0,
        focal_length=24.0,
        clipping_range=(0.1, 10000000.0),
        name="DriverCam",
        parent="/SDG/Cameras",
    )
    pallet_cam = rep.functional.create.camera(name="PalletCam", parent="/SDG/Cameras")
    top_view_cam = rep.functional.create.camera(
        clipping_range=(6.0, 1000000.0), name="TopCam", parent="/SDG/Cameras"
    )

    await omni.kit.app.get_app().next_update_async()

    # Setup render products
    resolution = config.get("resolution", (512, 512))
    forklift_rp = rep.create.render_product(top_view_cam, resolution, name="TopView")
    driver_rp = rep.create.render_product(driver_cam, resolution, name="DriverView")
    pallet_rp = rep.create.render_product(pallet_cam, resolution, name="PalletView")

    render_products = [forklift_rp, driver_rp, pallet_rp]
    for render_product in render_products:
        render_product.hydra_texture.set_updates_enabled(False)

    # Initialize writer and attach to render products
    writer = setup_writer(config)
    if not writer:
        print("[SDG] Failed to setup writer")
        return

    writer.attach(render_products)

    for render_product in render_products:
        render_product.hydra_texture.set_updates_enabled(True)

    rt_subframes = config.get("rt_subframes", -1)

    # Calculate camera randomization bounds
    pallet_tf = omni.usd.get_world_transform_matrix(pallet_prim)
    camera_bounds = setup_camera_bounds(pallet_prim, forklift_prim, pallet_tf, forklift_tf)
    pallet_cam_bounds_min = camera_bounds["pallet_cam"]["min"]
    pallet_cam_bounds_max = camera_bounds["pallet_cam"]["max"]
    top_cam_bounds_min = camera_bounds["top_cam"]["min"]
    top_cam_bounds_max = camera_bounds["top_cam"]["max"]
    driver_cam_bounds_min = camera_bounds["driver_cam"]["min"]
    driver_cam_bounds_max = camera_bounds["driver_cam"]["max"]

    # Setup scatter plane and cone placement
    scatter_plane = create_scatter_plane_for_prim(pallet_prim, pallet_tf, parent_path="/SDG", scale_factor=0.8)
    cone_placement_corners, forklift_rotation_deg = setup_cone_placement_corners(forklift_prim)

    # Register graph-based randomizers for lights and materials
    register_lights_graph_randomizer(forklift_prim, pallet_prim, event_name="randomize_lights")

    cardbox_material_urls = [
        f"{assets_root_path}/Isaac/Environments/Simple_Warehouse/Materials/MI_PaperNotes_01.mdl",
        f"{assets_root_path}/Isaac/Environments/Simple_Warehouse/Materials/MI_CardBoxB_05.mdl",
    ]
    register_cardboxes_materials_graph_randomizer(
        cardboxes, cardbox_material_urls, event_name="randomize_cardboxes_materials"
    )

    # Run physics simulation to settle boxes on pallet
    await simulate_falling_objects_async(forklift_prim, assets_root_path, config, rng=rng)

    # SDG loop - generate frames with randomizations
    num_frames = config.get("num_frames", 10)
    print(f"[SDG] Running SDG for {num_frames} frames")
    for i in range(num_frames):
        print(f"[SDG] Frame {i}/{num_frames}")

        print(f"[SDG]  Randomizing boxes on pallet.")
        rep.functional.randomizer.scatter_2d(
            prims=cardboxes, surface_prims=scatter_plane, check_for_collisions=True, rng=rng
        )

        print(f"[SDG]  Randomizing boxes materials.")
        rep.utils.send_og_event(event_name="randomize_cardboxes_materials")
        print(f"[SDG]  Randomizing lights.")
        rep.utils.send_og_event(event_name="randomize_lights")

        print(f"[SDG]  Randomizing pallet camera.")
        rep.functional.modify.pose(
            pallet_cam,
            position_value=rng.uniform(pallet_cam_bounds_min, pallet_cam_bounds_max),
            look_at_value=pallet_prim,
            look_at_up_axis=(0, 0, 1),
        )

        print(f"[SDG]  Randomizing driver camera.")
        rep.functional.modify.pose(
            driver_cam,
            position_value=rng.uniform(driver_cam_bounds_min, driver_cam_bounds_max),
            look_at_value=pallet_prim,
            look_at_up_axis=(0, 0, 1),
        )

        if i % 2 == 0:
            print(f"[SDG]  Randomizing cone position.")
            selected_corner = cone_placement_corners[rng.integers(0, len(cone_placement_corners))]
            rep.functional.modify.pose(
                cone,
                position_value=selected_corner,
            )

        if i % 4 == 0:
            print(f"[SDG]  Randomizing top view camera.")
            roll_angle = rng.uniform(0, 2 * np.pi)
            rep.functional.modify.pose(
                top_view_cam,
                position_value=rng.uniform(top_cam_bounds_min, top_cam_bounds_max),
                look_at_value=forklift_prim,
                look_at_up_axis=(np.cos(roll_angle), np.sin(roll_angle), 0.0),
            )

        print(f"[SDG]  Capturing frame with rt_subframes={rt_subframes}")
        await rep.orchestrator.step_async(delta_time=0.0, rt_subframes=rt_subframes)

    # Cleanup
    await rep.orchestrator.wait_until_complete_async()
    writer.detach()
    for render_product in render_products:
        render_product.destroy()

    print("[SDG] Complete")

config = {
    "resolution": [512, 512],
    "rt_subframes": 32,
    "num_frames": 10,
    "env_url": "/Isaac/Environments/Simple_Warehouse/full_warehouse.usd",
    "writer": "BasicWriter",
    "backend_type": "DiskBackend",
    "backend_params": {
        "output_dir": "_out_scene_based_sdg",
    },
    "writer_config": {
        "rgb": True,
        "bounding_box_2d_tight": True,
        "semantic_segmentation": True,
        "distance_to_image_plane": True,
        "bounding_box_3d": True,
        "occlusion": True,
    },
    "clear_previous_semantics": True,
    "forklift": {
        "url": "/Isaac/Props/Forklift/forklift.usd",
        "class": "forklift",
    },
    "cone": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/S_TrafficCone.usd",
        "class": "traffic_cone",
    },
    "pallet": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/SM_PaletteA_01.usd",
        "class": "pallet",
    },
    "cardbox": {
        "url": "/Isaac/Environments/Simple_Warehouse/Props/SM_CardBoxD_04.usd",
        "class": "cardbox",
    },
}

asyncio.ensure_future(run_example_async(config))

Loading the Environment

The environment is a USD stage. Use get_assets_root_path_async to get the path to the nucleus server and then load the environment using omni.usd.get_context().open_stage().

Load the Environment

# Get server path
assets_root_path = await get_assets_root_path_async()
if assets_root_path is None:
    print("[SDG] Could not get nucleus server path")
    return

# Load environment stage
env_url = config.get("env_url", "/Isaac/Environments/Grid/default_environment.usd")
env_path = env_url if env_url.startswith("omniverse://") else assets_root_path + env_url
print(f"[SDG] Loading Stage {env_url}")
omni.usd.get_context().open_stage(env_path)
stage = omni.usd.get_context().get_stage()

await omni.kit.app.get_app().next_update_async()

Creating the Cameras and the Writer

The example provides two ways (Replicator and Isaac Sim API) of creating cameras rep.create.camera and prims.create_prim. prims.create_prim``is used as render products to generate the data. The created render products are attached to the built-in ``BasicWriter to collect the data from the selected annotators (rgb, semantic_segmentation, bounding_box_3d) and to write it to the given output path. Use rep.get.prim_at_path``to access ``driver_cam_prim wrapped in an OmniGraph node so that it can be randomized by each step of the randomization graph generated by Replicator.

The cameras used in the examples are created using rep.functional.create.camera, which create camera prims used by render products.

Cameras

# Create SDG scope for organizing all generated objects
sdg_scope = stage.DefinePrim("/SDG", "Scope")

# Create cameras
rep.functional.create.scope(name="Cameras", parent="/SDG")
driver_cam = rep.functional.create.camera(
    focus_distance=400.0,
    focal_length=24.0,
    clipping_range=(0.1, 10000000.0),
    name="DriverCam",
    parent="/SDG/Cameras",
)
pallet_cam = rep.functional.create.camera(name="PalletCam", parent="/SDG/Cameras")
top_view_cam = rep.functional.create.camera(
    clipping_range=(6.0, 1000000.0), name="TopCam", parent="/SDG/Cameras"
)

From the cameras, render products are created and disabled until the SDG pipeline starts to improve performance by avoiding unnecessary rendering. The writer setup is handled by a helper function that supports optional backend configuration for flexible output handling.

Writer and Render Products

# Setup render products
resolution = config.get("resolution", (512, 512))
forklift_rp = rep.create.render_product(top_view_cam, resolution, name="TopView")
driver_rp = rep.create.render_product(driver_cam, resolution, name="DriverView")
pallet_rp = rep.create.render_product(pallet_cam, resolution, name="PalletView")

render_products = [forklift_rp, driver_rp, pallet_rp]
for render_product in render_products:
    render_product.hydra_texture.set_updates_enabled(False)

# Initialize writer and attach to render products
writer = setup_writer(config)
if not writer:
    print("[SDG] Failed to setup writer")
    return

writer.attach(render_products)

for render_product in render_products:
    render_product.hydra_texture.set_updates_enabled(True)

The setup_writer helper function handles writer initialization with optional backend support:

def setup_writer(config: dict) -> rep.Writer | None:
    """Setup and initialize writer with optional backend support."""

    def normalize_output_dir(params):
        if "output_dir" in params and not os.path.isabs(params["output_dir"]):
            params["output_dir"] = os.path.join(os.getcwd(), params["output_dir"])

    writer_type = config.get("writer", "BasicWriter")
    if writer_type not in rep.WriterRegistry.get_writers():
        print(f"[SDG] Writer type '{writer_type}' not found in registry.")
        return None

    writer = rep.WriterRegistry.get(writer_type)
    writer_kwargs = dict(config.get("writer_config", {}))
    normalize_output_dir(writer_kwargs)

    backend_type = config.get("backend_type")
    backend = None
    if backend_type:
        try:
            backend = rep.backends.get(backend_type)
        except Exception as e:
            print(f"[SDG] Backend '{backend_type}' not found: {e}")
            return None

        backend_params = dict(config.get("backend_params", {}))
        normalize_output_dir(backend_params)

        try:
            print(f"[SDG] Backend: {backend_type} | Params: {backend_params}")
            backend.initialize(**backend_params)
        except TypeError as e:
            print(f"[SDG] Invalid backend params: {e}")
            return None

    if "output_dir" in writer_kwargs:
        print(f"[SDG] Output: {writer_kwargs['output_dir']}")

    backend_info = f" + {backend_type}" if backend else ""
    print(f"[SDG] Writer: {writer_type}{backend_info} | Config: {writer_kwargs}")

    try:
        if backend:
            writer.initialize(backend=backend, **writer_kwargs)
        else:
            writer.initialize(**writer_kwargs)
    except TypeError as e:
        print(f"[SDG] Invalid writer params: {e}")
        return None

    return writer

Domain Randomization

The following snippet provides examples of various randomization possibilities using Isaac Sim and Replicator API. The example uses a seeded random number generator (numpy.random.Generator) for reproducible randomization. It starts by spawning a forklift using the Isaac Sim API to a randomly generated pose. It then uses the forklift pose to place a pallet in front of it within the bounds of a random distance. Cardboxes and a traffic cone are also created upfront for later randomization.

Isaac Sim API Asset Spawning

# Initialize randomization with seed for reproducibility
rep.set_global_seed(42)
rng = np.random.default_rng(42)

# Spawn forklift at random pose
forklift_prim = prims.create_prim(
    prim_path="/SDG/Forklift",
    position=(rng.uniform(-20, -2), rng.uniform(-1, 3), 0),
    orientation=euler_angles_to_quat([0, 0, rng.uniform(0, math.pi)]),
    usd_path=assets_root_path + config["forklift"]["url"],
    semantic_label=config["forklift"]["class"],
)

# Spawn pallet in front of forklift with random offset
forklift_tf = omni.usd.get_world_transform_matrix(forklift_prim)
pallet_offset_tf = Gf.Matrix4d().SetTranslate(Gf.Vec3d(0, rng.uniform(-1.8, -1.2), 0))
pallet_pos = (pallet_offset_tf * forklift_tf).ExtractTranslation()
forklift_quat = forklift_tf.ExtractRotationQuat()
forklift_quat_xyzw = (forklift_quat.GetReal(), *forklift_quat.GetImaginary())

pallet_prim = prims.create_prim(
    prim_path="/SDG/Pallet",
    position=pallet_pos,
    orientation=forklift_quat_xyzw,
    usd_path=assets_root_path + config["pallet"]["url"],
    semantic_label=config["pallet"]["class"],
)

# Create cardboxes for pallet scattering
cardboxes = []
for i in range(5):
    cardbox = prims.create_prim(
        prim_path=f"/SDG/CardBox_{i}",
        usd_path=assets_root_path + config["cardbox"]["url"],
        semantic_label=config["cardbox"]["class"],
    )
    cardboxes.append(cardbox)

# Create traffic cone for corner placement
cone = prims.create_prim(
    prim_path="/SDG/Cone",
    usd_path=assets_root_path + config["cone"]["url"],
    semantic_label=config["cone"]["class"],
)

The new Replicator API uses rep.functional for direct randomization without graph registration. A scatter plane is created using a helper function, and boxes are scattered directly using rep.functional.randomizer.scatter_2d in the SDG loop. Material randomization is handled through a separate graph-based randomizer.

Scatter Plane Setup

def create_scatter_plane_for_prim(
    prim: Usd.Prim, prim_tf: Gf.Matrix4d, parent_path: str, scale_factor: float = 0.8, visible: bool = False
) -> Usd.Prim:
    """Create scatter plane sized and aligned to prim surface."""
    bb_cache = create_bbox_cache()
    prim_bbox = bb_cache.ComputeLocalBound(prim)
    prim_bbox.Transform(prim_tf)
    prim_size = prim_bbox.GetRange().GetSize()

    prim_quat = prim_tf.ExtractRotation().GetQuaternion()
    prim_quat_xyzw = (prim_quat.GetReal(), *prim_quat.GetImaginary())
    prim_rotation_deg = quat_to_euler_angles(np.array(prim_quat_xyzw), degrees=True)

    prim_pos = prim_tf.ExtractTranslation()
    scatter_plane_scale = (prim_size[0] * scale_factor, prim_size[1] * scale_factor, 1)
    scatter_plane_pos = prim_pos + Gf.Vec3d(0, 0, prim_size[2])

    scatter_plane = rep.functional.create.plane(
        scale=scatter_plane_scale,
        position=tuple(scatter_plane_pos),
        rotation=tuple(prim_rotation_deg),
        visible=visible,
        parent=parent_path,
    )

    return scatter_plane

# Setup scatter plane
pallet_tf = omni.usd.get_world_transform_matrix(pallet_prim)
scatter_plane = create_scatter_plane_for_prim(pallet_prim, pallet_tf, parent_path="/SDG", scale_factor=0.8)

Material randomization for cardboxes is registered as a graph-based randomizer triggered by custom events:

Material Randomization Graph

def register_cardboxes_materials_graph_randomizer(
    cardboxes: list[Usd.Prim], cardbox_material_urls: list[str], event_name: str
) -> None:
    """Register graph randomizer to apply random materials to cardbox meshes."""
    cardbox_mesh_paths = []
    for cardbox in cardboxes:
        meshes = [child for child in cardbox.GetChildren() if child.IsA(UsdGeom.Mesh)]
        cardbox_mesh_paths.extend([mesh.GetPrimPath() for mesh in meshes])

    with rep.trigger.on_custom_event(event_name):
        cardbox_mesh_group_node = rep.create.group(cardbox_mesh_paths)
        with cardbox_mesh_group_node:
            rep.randomizer.materials(cardbox_material_urls)

# Register materials randomizer
cardbox_material_urls = [
    f"{assets_root_path}/Isaac/Environments/Simple_Warehouse/Materials/MI_PaperNotes_01.mdl",
    f"{assets_root_path}/Isaac/Environments/Simple_Warehouse/Materials/MI_CardBoxB_05.mdl",
]
register_cardboxes_materials_graph_randomizer(
    cardboxes, cardbox_material_urls, event_name="randomize_cardboxes_materials"
)

The traffic cone is positioned at one of the forklift’s bounding box corners. A helper function calculates the corner positions:

Cone Placement Setup

def setup_cone_placement_corners(
    forklift_prim: Usd.Prim, bb_cache=None, scale_factor: float = 1.3
) -> tuple[list[list[float]], tuple[float, float, float]]:
    """Calculate forklift OBB corners for cone placement, returns (corner_positions, rotation_degrees)."""
    if bb_cache is None:
        bb_cache = create_bbox_cache()

    forklift_obb_center, forklift_obb_axes, forklift_obb_extent = compute_obb(bb_cache, forklift_prim.GetPrimPath())
    enlarged_extent = (
        forklift_obb_extent[0] * scale_factor,
        forklift_obb_extent[1] * scale_factor,
        forklift_obb_extent[2],
    )
    forklift_obb_corners = get_obb_corners(forklift_obb_center, forklift_obb_axes, enlarged_extent)

    cone_placement_corners = [
        forklift_obb_corners[0].tolist(),
        forklift_obb_corners[2].tolist(),
        forklift_obb_corners[4].tolist(),
        forklift_obb_corners[6].tolist(),
    ]

    forklift_obb_quat = Gf.Matrix3d(forklift_obb_axes).ExtractRotation().GetQuaternion()
    forklift_obb_quat_xyzw = (forklift_obb_quat.GetReal(), *forklift_obb_quat.GetImaginary())
    forklift_rotation_deg = quat_to_euler_angles(np.array(forklift_obb_quat_xyzw), degrees=True)

    return cone_placement_corners, forklift_rotation_deg

# Setup cone placement
cone_placement_corners, forklift_rotation_deg = setup_cone_placement_corners(forklift_prim)

Light randomization is registered as a graph-based randomizer triggered by custom events:

Light Randomization Graph

def register_lights_graph_randomizer(forklift_prim: Usd.Prim, pallet_prim: Usd.Prim, event_name: str) -> None:
    """Register graph randomizer to create sphere lights with varying color, intensity, and position."""
    bb_cache = create_bbox_cache()
    combined_bounds = compute_combined_aabb(bb_cache, [forklift_prim.GetPrimPath(), pallet_prim.GetPrimPath()])
    light_pos_min = (combined_bounds[0], combined_bounds[1], 6)
    light_pos_max = (combined_bounds[3], combined_bounds[4], 7)

    with rep.trigger.on_custom_event(event_name):
        rep.create.light(
            light_type="Sphere",
            color=rep.distribution.uniform((0.2, 0.1, 0.1), (0.9, 0.8, 0.8)),
            intensity=rep.distribution.uniform(2000, 4000),
            position=rep.distribution.uniform(light_pos_min, light_pos_max),
            scale=rep.distribution.uniform(1, 4),
            count=3,
        )

# Register lights randomizer
register_lights_graph_randomizer(forklift_prim, pallet_prim, event_name="randomize_lights")

Similar to the above examples, Replicator has support for many other randomizations. For more information, see Replicator’s randomizer examples tutorials.

Camera bounds are calculated using a helper function to determine the randomization ranges:

Camera Bounds Setup

def setup_camera_bounds(
    pallet_prim: Usd.Prim, forklift_prim: Usd.Prim, pallet_tf: Gf.Matrix4d, forklift_tf: Gf.Matrix4d
) -> dict[str, dict[str, tuple[float, float, float]]]:
    """Calculate camera randomization bounds for pallet, top view, and driver cameras."""
    pallet_pos = pallet_tf.ExtractTranslation()
    pallet_cam_bounds = {
        "min": (pallet_pos[0] - 2, pallet_pos[1] - 2, 2),
        "max": (pallet_pos[0] + 2, pallet_pos[1] + 2, 4),
    }

    forklift_pos = forklift_tf.ExtractTranslation()
    top_cam_bounds = {
        "min": (forklift_pos[0], forklift_pos[1], 9),
        "max": (forklift_pos[0], forklift_pos[1], 11),
    }

    driver_cam_pos = forklift_pos + Gf.Vec3d(0.0, 0.0, 1.9)
    driver_cam_bounds = {
        "min": (driver_cam_pos[0], driver_cam_pos[1], driver_cam_pos[2] - 0.25),
        "max": (driver_cam_pos[0], driver_cam_pos[1], driver_cam_pos[2] + 0.25),
    }

    return {
        "pallet_cam": pallet_cam_bounds,
        "top_cam": top_cam_bounds,
        "driver_cam": driver_cam_bounds,
    }

# Calculate camera randomization bounds
camera_bounds = setup_camera_bounds(pallet_prim, forklift_prim, pallet_tf, forklift_tf)
pallet_cam_bounds_min = camera_bounds["pallet_cam"]["min"]
pallet_cam_bounds_max = camera_bounds["pallet_cam"]["max"]
top_cam_bounds_min = camera_bounds["top_cam"]["min"]
top_cam_bounds_max = camera_bounds["top_cam"]["max"]
driver_cam_bounds_min = camera_bounds["driver_cam"]["min"]
driver_cam_bounds_max = camera_bounds["driver_cam"]["max"]

After setting up the randomizers and before running the data collection, a short physics simulation is run. The example drops several stacked boxes on a pallet behind the forklift using SimulationManager and the experimental GeomPrim and RigidPrim classes.

Isaac Sim Simulation

async def simulate_falling_objects_async(
    forklift_prim: Usd.Prim,
    assets_root_path: str,
    config: dict,
    max_sim_steps: int = 250,
    num_boxes: int = 8,
    rng: np.random.Generator | None = None,
) -> None:
    """Run physics simulation to drop boxes on pallet near forklift."""
    if rng is None:
        rng = np.random.default_rng()

    # Spawn pallet at random position relative to forklift
    forklift_transform = omni.usd.get_world_transform_matrix(forklift_prim)
    sim_pallet_offset = Gf.Matrix4d().SetTranslate(Gf.Vec3d(rng.uniform(-1, 1), rng.uniform(-4, -3.6), 0))
    sim_pallet_position = (sim_pallet_offset * forklift_transform).ExtractTranslation()
    sim_pallet_rotation = euler_angles_to_quat([0, 0, rng.uniform(0, math.pi)])

    sim_pallet = prims.create_prim(
        prim_path="/World/SimulatedPallet",
        position=sim_pallet_position,
        orientation=sim_pallet_rotation,
        usd_path=assets_root_path + config["pallet"]["url"],
        semantic_label=config["pallet"]["class"],
    )
    sim_pallet_geom = GeomPrim(f"{str(sim_pallet.GetPrimPath())}/.*", apply_collision_apis=True)
    sim_pallet_geom.set_collision_approximations("boundingCube")

    # Spawn boxes stacked above pallet
    bbox_cache = create_bbox_cache()
    current_height = bbox_cache.ComputeLocalBound(sim_pallet).GetRange().GetSize()[2] * 1.1

    sim_box_rigid_prims = []
    for box_index in range(num_boxes):
        box_xy_offset = Gf.Vec3d(rng.uniform(-0.2, 0.2), rng.uniform(-0.2, 0.2), current_height)
        sim_box = prims.create_prim(
            prim_path=f"/World/SimulatedCardbox_{box_index}",
            position=sim_pallet_position + box_xy_offset,
            orientation=sim_pallet_rotation,
            usd_path=assets_root_path + config["cardbox"]["url"],
            semantic_label=config["cardbox"]["class"],
        )
        current_height += bbox_cache.ComputeLocalBound(sim_box).GetRange().GetSize()[2] * 1.1

        sim_box_geom = GeomPrim(f"{str(sim_box.GetPrimPath())}/.*", apply_collision_apis=True)
        sim_box_geom.set_collision_approximations("convexHull")
        sim_box_rigid_prims.append(RigidPrim(str(sim_box.GetPrimPath())))

    # Run physics simulation
    SimulationManager.set_physics_dt(1.0 / 90.0)
    SimulationManager.initialize_physics()

    # Simulate until boxes settle or max steps reached
    velocity_threshold = 0.01
    for step in range(max_sim_steps):
        SimulationManager.step()
        if sim_box_rigid_prims:
            top_box_velocity = sim_box_rigid_prims[-1].get_velocities(indices=[0])[0].numpy()
            if np.linalg.norm(top_box_velocity) < velocity_threshold:
                print(f"[SDG] Simulation settled at step {step}")
                break
        await omni.kit.app.get_app().next_update_async()

Running the Script

The SDG loop runs randomizations directly using rep.functional APIs, triggers graph-based randomizers via custom events, and captures frames. The loop uses the seeded random number generator for reproducible results.

SDG Loop Execution

# Run physics simulation to settle boxes on pallet
await simulate_falling_objects_async(forklift_prim, assets_root_path, config, rng=rng)

# SDG loop - generate frames with randomizations
num_frames = config.get("num_frames", 10)
print(f"[SDG] Running SDG for {num_frames} frames")
for i in range(num_frames):
    # Scatter boxes on pallet using functional API
    rep.functional.randomizer.scatter_2d(
        prims=cardboxes, surface_prims=scatter_plane, check_for_collisions=True, rng=rng
    )

    # Trigger graph-based randomizers via events
    rep.utils.send_og_event(event_name="randomize_cardboxes_materials")
    rep.utils.send_og_event(event_name="randomize_lights")

    # Randomize pallet camera position
    rep.functional.modify.pose(
        pallet_cam,
        position_value=rng.uniform(pallet_cam_bounds_min, pallet_cam_bounds_max),
        look_at_value=pallet_prim,
        look_at_up_axis=(0, 0, 1),
    )

    # Randomize driver camera position
    rep.functional.modify.pose(
        driver_cam,
        position_value=rng.uniform(driver_cam_bounds_min, driver_cam_bounds_max),
        look_at_value=pallet_prim,
        look_at_up_axis=(0, 0, 1),
    )

    # Randomize cone position every 2 frames
    if i % 2 == 0:
        selected_corner = cone_placement_corners[rng.integers(0, len(cone_placement_corners))]
        rep.functional.modify.pose(
            cone,
            position_value=selected_corner,
        )

    # Randomize top view camera every 4 frames
    if i % 4 == 0:
        roll_angle = rng.uniform(0, 2 * np.pi)
        rep.functional.modify.pose(
            top_view_cam,
            position_value=rng.uniform(top_cam_bounds_min, top_cam_bounds_max),
            look_at_value=forklift_prim,
            look_at_up_axis=(np.cos(roll_angle), np.sin(roll_angle), 0.0),
        )

    # Capture frame
    await rep.orchestrator.step_async(delta_time=0.0, rt_subframes=rt_subframes)

After the SDG loop completes, proper cleanup ensures all data is written and resources are released:

Cleanup

# Cleanup
await rep.orchestrator.wait_until_complete_async()
writer.detach()
for render_product in render_products:
    render_product.destroy()

print("[SDG] Complete")

Summary

This tutorial covered the following topics:

1. Starting a SimulationApp instance of Isaac Sim to work with Replicator

2. Loading a stage and custom assets at random locations using Isaac Sim API with seeded randomization

3. Setting up cameras using rep.functional.create.camera with organized stage structure

4. Configuring writers with optional backend support for flexible output handling

5. Using rep.functional APIs for direct randomization (scatter, pose modification)

6. Creating graph-based randomizers for lights and materials triggered by custom events

7. Running physics simulations with SimulationManager and experimental GeomPrim/RigidPrim classes

8. Proper cleanup of writers and render products

Next Steps

One possible use for the created data is with the TAO Toolkit. After the generated synthetic data is in Kitti format, you can use the TAO Toolkit to train a model. TAO provides segmentation, classification and object detection models. This example uses object detection with the Detectnet V2 model as a use case.

To get started with TAO, follow the set-up instruction video.

TAO uses Jupyter notebooks to guide you through the training process. In the folder cv_samples_v1.3.0, you can find notebooks for multiple models. You can use any of the object detection networks for this use case, but this example uses Detectnet_V2.

In the detectnet_v2 folder, you can find the Jupyter notebook and the specs folder. The TAO Detectnet V2 documentation goes into more detail about this sample. TAO works with configuration files that can be found in the specs folder. Here, you must modify the specs to refer to the generated synthetic data as the input.

To prepare the data, you must run the following command.

tao detectnet_v2 dataset-convert [-h] -d DATASET_EXPORT_SPEC -o OUTPUT_FILENAME [-f VALIDATION_FOLD]

This is in the Jupyter notebook with a sample configuration. Modify the spec file to match the folder structure of your synthetic data. The data is in TFrecord format and is ready for training. Again, you need to change the spec file for training to represent the path to the synthetic data and the classes being detected.

tao detectnet_v2 train [-h] -k <key>
                        -r <result directory>
                        -e <spec_file>
                        [-n <name_string_for_the_model>]
                        [--gpus <num GPUs>]
                        [--gpu_index <comma separate gpu indices>]
                        [--use_amp]
                        [--log_file <log_file>]

For any questions regarding the TAO Toolkit, refer to the TAO documentation.

Further Learning

To learn how to use NVIDIA Isaac Sim to create data sets in an interactive manner, see the Synthetic Data Recorder and then visualize them with the Synthetic Data Visualizer.
