Adding Props#

Learning Objectives#

This tutorial shows how to add objects to the scene and configure them for simulation.

10-15 Minute Tutorial

Adding Rubik’s Cube#

Start by adding a Rubik’s Cube to the scene.

  1. Create a new stage on Isaac Sim by clicking on the File tab and then clicking on New Stage.

  2. In the Content Browser, go to Isaac Sim > Props > Rubiks_Cube > rubiks_cube.usd and drag and drop the rubiks_cube.usd file into the stage. This will add a Rubik’s Cube to the scene as a payload.

  3. Left click on the Rubik’s Cube and in the properties panel, set the Position to (0, 0, 0.1).

  4. On the stage, right click Create > Isaac > Environment > Flat Grid to create a flat ground.

  5. Click PLAY to start the simulation, you will see the Rubik’s Cube is not falling to the ground. This is because the Rubik’s Cube is not a rigid body.

  6. Click STOP to stop the simulation.

Configure Physics Properties#

Add Rigid Body Properties#

  1. Right click on the Rubik’s Cube and select Add > Physics > Rigid Body. This will add a rigid body attribute to the Rubik’s Cube and it will be affected by physics.

  2. Now, click PLAY to start the simulation, you will see the Rubik’s Cube fall through the ground, this is because the Rubik’s Cube does not have a collision shape. Click STOP to stop the simulation.

Rubik's Cube without collision

Add Collision Properties#

  1. Right click on the Rubik’s Cube and select Add > Physics > Collider Presets. This will add a collision attribute to the Rubik’s Cube and it will collide with other objects.

  2. Now, click PLAY to start the simulation, you will see the Rubik’s Cube fall on the ground. Click STOP to stop the simulation.

Rubik's Cube with collision

Add Mass#

In addition to collision, you can also add mass, inertia, and center of mass to the Rubik’s Cube to configure its physical properties.

  1. Right click on the Rubik’s Cube and select Add > Physics > Mass. This will add a mass attribute to the Rubik’s Cube.

  2. In the properties panel, scroll down to the Mass section and set the Mass to 0.1 to make it weigh 100 grams.

Note

In addition to mass, you can also set the Density, Center of Mass, Diagonal Inertia, and Principal Axes of the object.

Setting the mass to 0 will make the simulation to compute it at runtime based on its volume (assuming 1000 kg/m^3 if density is not specified).

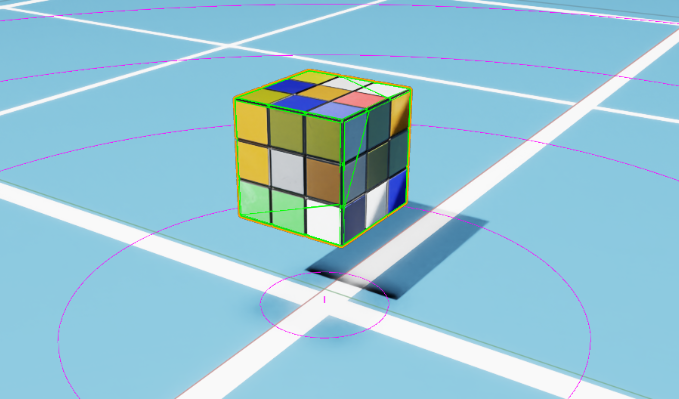

Visualize Collision Shapes#

Right click on the Eye on the top left of the viewport and select Show By Type > Physics > Coliders > All. This will show the collision shapes everything in the scene.

The ground plane’s collider is pink to denote it is a static object. The Rubik’s Cube is a dynamic object, so it falls to the ground and its collider is green.

Rubik's Cube collision shapes

Note

You can adjust the collider type by left clicking on the RubikCube mesh at World/rubiks_cube/RubikCube and scroll down to the Physics/Collider section, and select a different approximate type in the Approximation tab.

Customize Collider#

Let’s customize the collider for the Rubik’s Cube, by making it a sphere and easier to roll

  1. Left click on the RubikCube mesh at World/rubiks_cube/RubikCube and scroll down to the Physics/Collider section, press the x on the right to delete the current collider.

  2. Left click on the RubikCube mesh and select Create > Shape > Sphere. This will add a sphere shape around the Rubik’s Cube.

  3. Scroll down to the Geometry section and set the Radius to 0.07 to make the sphere smaller to match the Rubik’s Cube.

  4. Add a Collider to the sphere by selecting Add > Physics > Collider Presets.

  5. Hide the Sphere by unckecking the eye icon to the right of the sphere on the stage.

  6. Slant the groundplane by going to FlatGrid and Click on Toggle Offset Mode icon on the right of Transform in the Properties panel, then setting the Rotation to (10, 0, 0) to give it a 10 degree slope.

  7. Click PLAY to start the simulation, you will see the Rubik’s Cube rolls on the ground. Click STOP to stop the simulation.

Rubik's Cube sphere collider

Add Physics Materials#

You can also apply surface properties to the Rubik’s Cube by adding a physics material.

  1. Left click on the Rubik’s Cube and in the properties panel, set the Position to (0, 0, 1) to move it up.

  2. Right click on the Rubik’s Cube and select Create > Physics > Physics Material. This will add a physics material attribute to the Rubik’s Cube. Drag it to the World/rubiks_cube/Looks folder.

  3. In the properties panel, scroll down to the Physics Material section and set the Restitution to 1 to make it bounce.

  4. Select the Sphere collider we created earlier and in the properties panel, scroll down to the Physics/Physics material on selected Material section and select the Physics Material we just created at /World/rubiks_cube/Looks/PhysicsMaterial.

  5. Click PLAY to start the simulation, you will see the Rubik’s Cube rolls on the ground and bounces. Click STOP to stop the simulation.

Note

You can also set the Static Friction and Dynamic Friction as well.

Rubik's Cube physics material

Note

The completed asset is available at Isaac Sim > Samples > Rigging > RubiksCube > rubiks_cube.usd in the Content Browser.

What’s Next?#

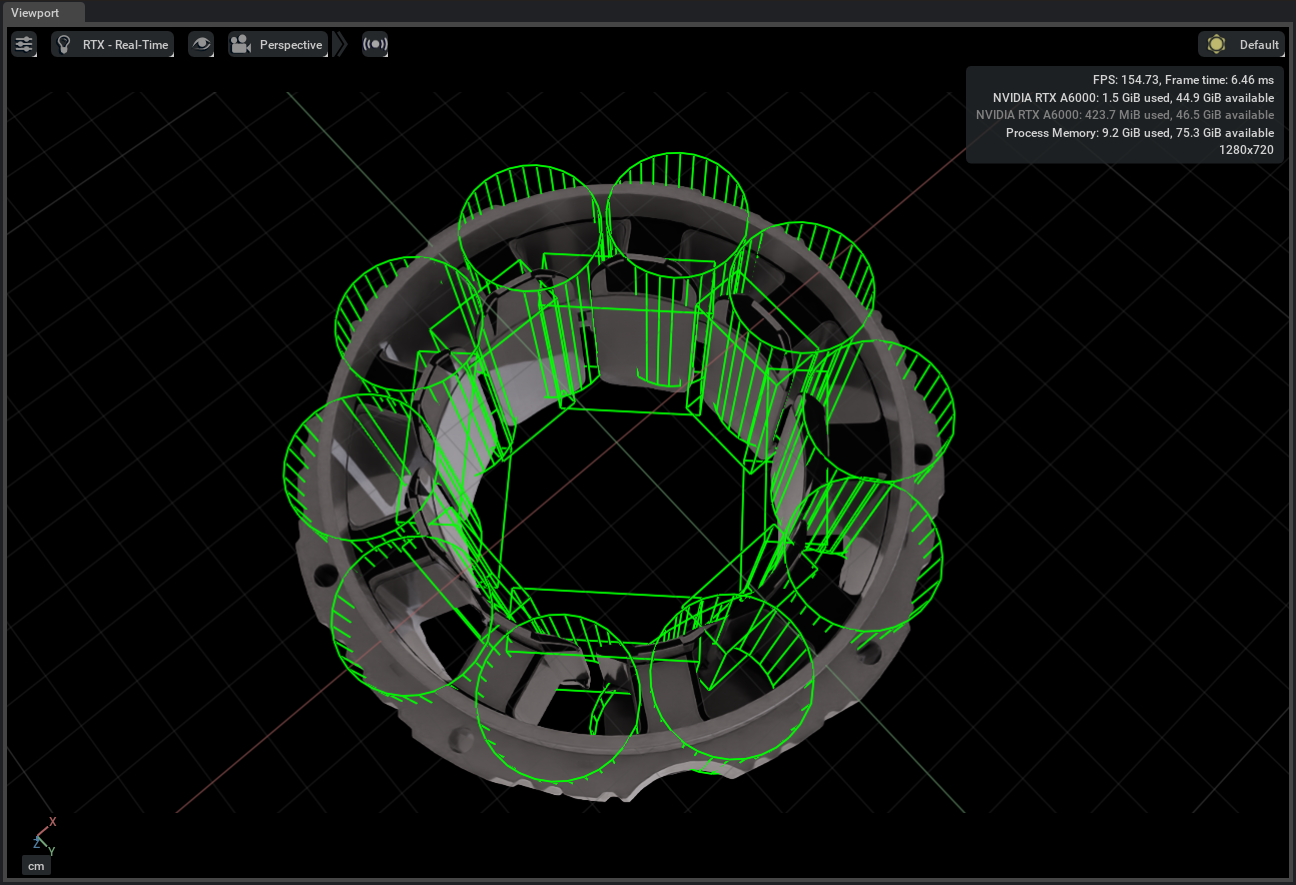

Extending from the concepts above, you assemble more complex collision shapes using basic shapes. For example, in the image below, we approximated a bearing collider using cylinders and rectangles.

Bearing

Summary#

This tutorial covered the following topics:

  1. Adding objects to the scene.

  2. Configuring object physics properties.

  3. Customize object collision shapes.

  4. Apply physics materials to objects.
