ROS 2 installation

Install Isaac Sim 6.2.0 using Workstation Setup, then select your configuration. Ubuntu 24.04 with Jazzy is recommended. The simulator includes ROS libraries for the default interfaces. External nodes need their own ROS environment; custom interfaces also need a build compatible with the simulator’s Python 3.12 runtime.

ROS 2 Setup

Platform:

LinuxWindows

Ubuntu Version:

Ubuntu 24.04Ubuntu 22.04

Ros Distro:

JazzyHumble

Package Type:

Default ROS InterfacesCustom ROS Interfaces

Install Method:

PixiWSL2 (Deprecated)

Default ROS Interfaces use the bundled message types. Custom ROS Interfaces require generated Python modules built for the simulator’s Python 3.12 runtime; keep native Python 3.10 ROS in a separate external-node terminal.

Warning

Humble on Ubuntu 24.04 is not supported. Select Jazzy, or use Humble on Ubuntu 22.04.

Note

This page documents the native Windows Pixi procedure for Jazzy. Release notes and newer workspace configurations include additional Humble/Pixi support, but the Humble Windows procedure is not verified here. Select Jazzy for this walkthrough, or WSL2 (deprecated) for the documented Humble path. See the workspace configurations.

Install ROS 2

Follow the ROS 2 Jazzy Debian installation. In each external-node terminal, source ROS:

source /opt/ros/jazzy/setup.bash

Follow the ROS 2 Humble Debian installation. In each external-node terminal, source ROS:

source /opt/ros/humble/setup.bash

For external nodes, use Build external Jazzy nodes in Docker or an advanced Jazzy source build. Jazzy Debian packages are unavailable on Ubuntu 22.04. Only if you choose the native source-build alternative, source its completed installation in the external-node terminal:

source ~/ros2_jazzy/install/setup.bash

Pixi supplies native ROS 2 Jazzy and build dependencies. Install Windows 11 x64, Git, Pixi 0.68.0 or later (winget install prefix-dev.pixi), and MSVC Build Tools 2022 with Desktop development with C++. No separate system ROS or WSL is needed.

1. In PowerShell as Administrator, install WSL2 with Ubuntu 22.04. Skip installation if this WSL2 distribution already exists:

   wsl --install -d Ubuntu-22.04


2. Restart Windows if prompted, then open the Ubuntu 22.04 app and complete its first-time user setup. For virtualization errors, follow the Windows virtualization instructions.

3. Check the distribution version in PowerShell:

   wsl --list --verbose


   If Ubuntu-22.04 shows version 1, convert it before continuing:

   wsl --set-version Ubuntu-22.04 2


   For future distributions, wsl --set-default-version 2 selects WSL2 by default.

4. Inside WSL, install ROS 2 Humble.

In each WSL external-node terminal, source ROS:

source /opt/ros/humble/setup.bash

The simulator runs on Windows. This WSL workflow is deprecated; custom interfaces are not supported.

1. In PowerShell as Administrator, install WSL2 with Ubuntu 24.04. Skip installation if this WSL2 distribution already exists:

   wsl --install -d Ubuntu-24.04


2. Restart Windows if prompted, then open the Ubuntu 24.04 app and complete its first-time user setup. For virtualization errors, follow the Windows virtualization instructions.

3. Check the distribution version in PowerShell:

   wsl --list --verbose


   If Ubuntu-24.04 shows version 1, convert it before continuing:

   wsl --set-version Ubuntu-24.04 2


   For future distributions, wsl --set-default-version 2 selects WSL2 by default.

4. Inside WSL, install ROS 2 Jazzy.

In each WSL external-node terminal, source ROS:

source /opt/ros/jazzy/setup.bash

The simulator runs on Windows. This WSL workflow is deprecated; custom interfaces are not supported.

Build the ROS workspace

The clone commands select the workspace release for Isaac Sim 6.2.0. If you already have a clone, follow Reuse an existing workspace clone before building.

Check Cross-product compatibility for the matching workspace release. Do not replace the release tag with the default branch and assume compatibility.

Build this workspace only for tutorials or packages you need. In the sourced external-node terminal:

1. Install the build tools.

   sudo apt install python3-rosdep python3-colcon-common-extensions build-essential


2. Prepare rosdep. Run this initialization only if rosdep has not already been initialized:

   sudo rosdep init


   Update the dependency database, including when initialization was already done:

   rosdep update


3. Get the workspace. For a new clone:

   git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

   If you already have the repository, follow Reuse an existing workspace clone instead of cloning again.

4. Install package dependencies. Enter the workspace for the ROS distro sourced above:

   cd ~/IsaacSim-ros_workspaces/${ROS_DISTRO}_ws


   For custom interfaces, add your packages to src before installing dependencies and building.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this external-node terminal:

   source install/local_setup.bash


   In each new terminal, source ROS first, then ~/IsaacSim-ros_workspaces/<distro>_ws/install/local_setup.bash. For source-built ROS, use its install/setup.bash for the first step.

Build this workspace only for tutorials or packages you need. In the sourced external-node terminal:

1. Install the build tools.

   sudo apt install python3-rosdep python3-colcon-common-extensions build-essential


2. Prepare rosdep. Run this initialization only if rosdep has not already been initialized:

   sudo rosdep init


   Update the dependency database, including when initialization was already done:

   rosdep update


3. Get the workspace. For a new clone:

   git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

   If you already have the repository, follow Reuse an existing workspace clone instead of cloning again.

4. Install package dependencies. Enter the workspace for the ROS distro sourced above:

   cd ~/IsaacSim-ros_workspaces/${ROS_DISTRO}_ws


   For custom interfaces, add your packages to src before installing dependencies and building.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this external-node terminal:

   source install/local_setup.bash


   In each new terminal, source ROS first, then ~/IsaacSim-ros_workspaces/<distro>_ws/install/local_setup.bash. For source-built ROS, use its install/setup.bash for the first step.

Build this workspace only for tutorials or packages you need. In the sourced external-node terminal inside WSL:

1. Install the build tools.

   sudo apt install python3-rosdep python3-colcon-common-extensions build-essential


2. Prepare rosdep. Run this initialization only if rosdep has not already been initialized:

   sudo rosdep init


   Update the dependency database, including when initialization was already done:

   rosdep update


3. Get the workspace. For a new clone:

   git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

   If you already have the repository, follow Reuse an existing workspace clone instead of cloning again.

4. Install package dependencies. Enter the workspace for the ROS distro sourced above:

   cd ~/IsaacSim-ros_workspaces/${ROS_DISTRO}_ws


   Install the dependencies for the packages in src.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this external-node terminal:

   source install/local_setup.bash


   In each new terminal, source ROS first, then ~/IsaacSim-ros_workspaces/<distro>_ws/install/local_setup.bash. For source-built ROS, use its install/setup.bash for the first step.

The native Jazzy workspace uses Python 3.12 and can also be sourced in the simulator terminal.

Alternative: build external packages with source-built Jazzy

Complete the linked native Jazzy source installation first. This uses native Python 3.10 for external nodes, separately from the simulator’s Python 3.12 build.

Build this workspace only for tutorials or packages you need. In the sourced external-node terminal:

1. Install the build tools.

   sudo apt install python3-rosdep python3-colcon-common-extensions build-essential


2. Prepare rosdep. Run this initialization only if rosdep has not already been initialized:

   sudo rosdep init


   Update the dependency database, including when initialization was already done:

   rosdep update


3. Get the workspace. For a new clone:

   git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

   If you already have the repository, follow Reuse an existing workspace clone instead of cloning again.

4. Install package dependencies. Enter the workspace for the ROS distro sourced above:

   cd ~/IsaacSim-ros_workspaces/${ROS_DISTRO}_ws


   For custom interfaces, add your packages to src before installing dependencies and building.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this external-node terminal:

   source install/local_setup.bash


   In each new terminal, source ROS first, then ~/IsaacSim-ros_workspaces/<distro>_ws/install/local_setup.bash. For source-built ROS, use its install/setup.bash for the first step.

After this native build, skip the Docker procedure below. For default interfaces, continue to Launch the simulator; for custom interfaces, also complete Build simulator interfaces with Python 3.12 (x86_64) for the simulator.

Build external Jazzy nodes in Docker

Use this container for external Jazzy nodes on Ubuntu 22.04 unless you chose the native source-build alternative above. Skip this external-node build if you only need the custom Python 3.12 simulator interfaces below.

Install Docker Engine and configure Docker access for your account. Clone on the host if needed:

git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

For an existing clone, follow Reuse an existing workspace clone on the host before mounting it. First configure Configure Fast DDS over UDP, then configure the host simulator for the same distro, domain, and transport. This container runs external nodes, not the simulator or custom-interface build. The WSL Docker workflow is not supported by this guide.

ros_distro=humble
ros_image=osrf/ros:humble-desktop

ros_distro=jazzy
ros_image=osrf/ros:jazzy-desktop

For aarch64 (DGX Spark), use ros_image=arm64v8/ros:jazzy instead.

Optional GUI applications in the container

This requires a working host X11/XWayland display and socket.

1. Before starting the container: run xhost +si:localuser:root on the host. Add -e DISPLAY -v /tmp/.X11-unix:/tmp/.X11-unix:rw before the image name in the docker run command below.

2. Inside the container: install ros-${ROS_DISTRO}-rviz2 if needed, source ROS, and run rviz2.

3. After closing GUI apps: revoke display access on the host with xhost -si:localuser:root.

Start the container from the host terminal. The mounts share your workspace and UDP profile with the container:

docker run -it --net=host --name ros_ws_docker \
  -e ROS_DOMAIN_ID=0 -e RMW_IMPLEMENTATION=rmw_fastrtps_cpp \
  -e FASTRTPS_DEFAULT_PROFILES_FILE=/fastdds.xml \
  -v "$HOME/.ros/fastdds.xml:/fastdds.xml:ro" \
  -v "$HOME/IsaacSim-ros_workspaces/${ros_distro}_ws:/${ros_distro}_ws" \
  "$ros_image" /bin/bash

In the container shell:

1. Activate ROS and enter the mounted workspace. Add any custom packages to its src directory before installing dependencies:

   source /opt/ros/$ROS_DISTRO/setup.bash
   cd /${ROS_DISTRO}_ws


2. Install the build tools.

   apt-get update
   apt-get install -y python3-rosdep python3-colcon-common-extensions build-essential


3. Prepare rosdep. If it has not already been initialized in this container, run:

   rosdep init


   Refresh the dependency database:

   rosdep update


4. Install workspace dependencies.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this container shell:

   source install/local_setup.bash


Open additional shells with docker exec -it ros_ws_docker /bin/bash, then source both /opt/ros/$ROS_DISTRO/setup.bash and /${ROS_DISTRO}_ws/install/local_setup.bash. Verify with ros2 topic echo /clock while the simulator publishes.

See Reuse or save a ROS container to reopen or save this container.

Build simulator interfaces with Python 3.12 (x86_64)

With Docker Engine installed and usable by your account, clone the workspace recursively if needed and place custom packages under humble_ws/src. From the repository root:

cd ~/IsaacSim-ros_workspaces
./build_ros.sh -d humble -v 22.04

This produces both a Python 3.12 ROS installation and the custom workspace for the simulator. External nodes keep their separate native/container build.

Build simulator interfaces with Python 3.12 (x86_64)

With Docker Engine installed and usable by your account, clone the workspace recursively if needed and place custom packages under jazzy_ws/src. From the repository root:

cd ~/IsaacSim-ros_workspaces
./build_ros.sh -d jazzy -v 22.04

This produces both a Python 3.12 ROS installation and the custom workspace for the simulator. External nodes keep their separate native/container build.

In Command Prompt, clone to a short path to avoid Windows path-length failures:

git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git C:\IsaacSim-ros_workspaces
cd /d C:\IsaacSim-ros_workspaces\jazzy_ws

In pixi.toml, set isaac_sim_package_path under [target.win.activation] to your Isaac Sim binary installation or source build (default C:\isaacsim), then install the environment:

pixi install

Add custom packages to jazzy_ws/src before building. If they introduce dependencies, update the manifest using the maintenance steps below, then run pixi install again.

Build the workspace with the configured colcon build --merge-install task:

pixi run build

Subsequent pixi run or pixi shell commands activate ROS and the built workspace automatically.

Optional: install Isaac Sim Python packages in Pixi

From jazzy_ws, install into Pixi’s Python environment:

pixi run python -m pip install "isaacsim[all,extscache,ros2]==6.2.0.0" --extra-index-url https://pypi.nvidia.com

This is not recorded in pixi.toml or pixi.lock; repeat it if you recreate the environment. The sim task still launches the local installation configured above. See Install Isaac Sim using PIP for Python-package usage.

Pixi maintenance and troubleshooting

• Build fails: run pixi install and resolve any errors, then run pixi run clean followed by pixi run build.

• Add package.xml dependencies: run pixi ros init --distro jazzy. Review the regenerated manifest to preserve Isaac Sim tasks and activation settings, then run pixi install and rebuild.

• Add packages directly: use pixi add <package> for conda packages or pixi add --pypi <package> for PyPI.

• Unresolved dependencies / # NOT FOUND: check the names in package.xml. Add a channel that supplies the package with pixi workspace channel add <channel-url>, or regenerate with pixi ros init --distro jazzy --channel <channel-url>. If appropriate, use the PyPI package instead or contribute the missing ROS package to RoboStack.

• ros2 command not found: use pixi run ros2 ... or enter pixi shell before running ROS commands.

• Active ROS environment detected: start a clean terminal without manually sourced ROS or ROS environment overrides. Pixi manages activation itself.

• Logger symlink warning (WinError 1314): a log-symlink privilege warning is harmless. Enable Windows Developer Mode to allow symlink creation without elevation.

See the Pixi channel command for channel configuration.

Included ROS packages

See the Humble packages and Jazzy packages. The sample packages include:

• carter_navigation and iw_hub_navigation: robot navigation launch files and parameters.

• cmdvel_to_ackermann: Twist-to-Ackermann command conversion.

• custom_message: sample custom message interface.

• h1_fullbody_controller: H1 full-body controller launch files, parameters, and scripts.

• isaac_compressed_image_decoder: H.264/HEVC compressed image decoding to ROS images.

• isaac_moveit: MoveIt integration launch files and parameters.

• isaac_ros_navigation_goal: random or user-defined navigation goals.

• isaac_ros2_messages: services for poses, prims, and attributes.

• isaacsim_bringup: launch Isaac Sim as a ROS 2 node.

• isaac_tutorials: tutorial launch files, RViz configurations, and scripts.

The workspace dependency steps above install vision_msgs_package for bounding boxes and ackermann_msgs_package for Ackermann steering through rosdep or Pixi. No separate package installation is needed when using the tutorial workspace.

Launch the simulator

Open a separate, clean simulator terminal with ROS_DISTRO unset. For remote/container nodes, configure Configure Fast DDS over UDP first. Do not source an incompatible Python 3.10 environment into this terminal. If you built custom packages, activate the compatible Python 3.12 workspace first:

source /opt/ros/jazzy/setup.bash
source ~/IsaacSim-ros_workspaces/jazzy_ws/install/local_setup.bash

Launch Isaac Sim in this terminal; adjust ~/isaacsim if installed elsewhere. Without a sourced ROS environment, the launcher selects the bundled libraries; otherwise it preserves your environment:

~/isaacsim/isaac-sim.sh

Open a separate, clean simulator terminal with ROS_DISTRO unset. Do not source an incompatible Python 3.10 environment into this terminal. For remote/container nodes, configure Configure Fast DDS over UDP first. Adjust the installation path if needed:

~/isaacsim/isaac-sim.sh

The launcher selects bundled Humble, Fast DDS, and the ROS bridge.

Ubuntu 22.04 defaults to Humble. In a fresh simulator terminal, select both the Jazzy distro and bundled library path before launch. Set the library path once per terminal; setting only ROS_DISTRO prevents automatic bundled-library setup. For Docker nodes, configure Configure Fast DDS over UDP before launching.

Configure the simulator environment:

export isaac_sim_package_path="$HOME/isaacsim"
export ROS_DISTRO=jazzy
export RMW_IMPLEMENTATION=rmw_fastrtps_cpp
export LD_LIBRARY_PATH="$isaac_sim_package_path/exts/isaacsim.ros2.core/jazzy/lib${LD_LIBRARY_PATH:+:$LD_LIBRARY_PATH}"

Launch Isaac Sim in the same terminal:

"$isaac_sim_package_path/isaac-sim.sh"

Configure Configure Fast DDS over UDP first for remote/container nodes. Use a clean simulator terminal. Do not add bundled-library overrides or source Ubuntu 24.04 container binaries on the Ubuntu 22.04 host.

1. Activate the Python 3.12 build. Source ROS first, then the custom workspace:

   cd ~/IsaacSim-ros_workspaces
   source build_ws/humble/humble_ws/install/local_setup.bash
   source build_ws/humble/isaac_sim_ros_ws/install/local_setup.bash


2. Launch Isaac Sim in the same terminal:

   ~/isaacsim/isaac-sim.sh


Configure Configure Fast DDS over UDP first for remote/container nodes. Use a clean simulator terminal. Do not add bundled-library overrides or source Ubuntu 24.04 container binaries on the Ubuntu 22.04 host.

1. Activate the Python 3.12 build. Source ROS first, then the custom workspace:

   cd ~/IsaacSim-ros_workspaces
   source build_ws/jazzy/jazzy_ws/install/local_setup.bash
   source build_ws/jazzy/isaac_sim_ros_ws/install/local_setup.bash


2. Launch Isaac Sim in the same terminal:

   ~/isaacsim/isaac-sim.sh


Open three Command Prompt terminals in C:\IsaacSim-ros_workspaces\jazzy_ws. Terminal 1 — start the Zenoh router. Leave it running:

pixi run zenoh

Terminal 2 — launch Isaac Sim. The sim task enables the bridge in your configured local installation. Leave it running:

pixi run sim

Terminal 3 — run external nodes. Use pixi run ros2 commands for the verification below.

For Windows and WSL on the same machine, use WSL’s default NAT networking with explicit DDS peers. TCP port forwarding does not carry DDS UDP.

1. In WSL, find the Windows host address (the default gateway) and WSL’s IPv4 address on eth0 (omit the /prefix suffix):

   ip -4 route show default
   ip -4 -brief address show eth0


2. Configure Configure Fast DDS over UDP in WSL. Replace the two address placeholders in the WSL profile below, then copy it to C:\ros\fastdds.xml on Windows, creating the directory if needed. Recheck the addresses after restarting WSL and update both copies if they change.

3. In Administrator PowerShell, allow inbound UDP for the simulator. Adjust the executable path; for standalone Python, use kit\python\kit.exe. Resolve any existing firewall Block rule for that executable first; block rules override allow rules.

   New-NetFirewallRule -DisplayName "Isaac Sim ROS UDP" -Direction Inbound -Action Allow -Protocol UDP -Program "C:\isaacsim\kit\kit.exe"


   On Windows 11, also allow DDS through the WSL Hyper-V firewall for ROS_DOMAIN_ID=0:

   New-NetFirewallHyperVRule -Name "IsaacSim-WSL-DDS" -DisplayName "Isaac Sim WSL DDS" -Direction Inbound -VMCreatorId '{40E0AC32-46A5-438A-A0B2-2B479E8F2E90}' -Protocol UDP -LocalPorts 7400-7649


   This range covers the first 120 DDS participants. For another domain ID, add 250 * ROS_DOMAIN_ID to both port limits.

Use a fresh Windows Command Prompt or PowerShell terminal. Adjust the installation path below and set PATH once per terminal. These settings override the Windows Jazzy/Zenoh default.

Command Prompt

Configure the Windows bridge environment:

set "isaac_sim_package_path=C:\isaacsim"
set "ROS_DISTRO=humble"
set "RMW_IMPLEMENTATION=rmw_fastrtps_cpp"
set "ROS_DOMAIN_ID=0"
set "FASTRTPS_DEFAULT_PROFILES_FILE=C:\ros\fastdds.xml"
set "PATH=%isaac_sim_package_path%\exts\isaacsim.ros2.core\%ROS_DISTRO%\lib;%PATH%"

Launch Isaac Sim in the same terminal:

"%isaac_sim_package_path%\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

PowerShell

Configure the Windows bridge environment:

$env:isaac_sim_package_path = "C:\isaacsim"
$env:ROS_DISTRO = "humble"
$env:RMW_IMPLEMENTATION = "rmw_fastrtps_cpp"
$env:ROS_DOMAIN_ID = "0"
$env:FASTRTPS_DEFAULT_PROFILES_FILE = "C:\ros\fastdds.xml"
$env:PATH = "$env:isaac_sim_package_path\exts\isaacsim.ros2.core\$env:ROS_DISTRO\lib;$env:PATH"

Launch Isaac Sim in the same terminal:

& "$env:isaac_sim_package_path\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

Command Prompt

Configure the Windows bridge environment:

set "isaac_sim_package_path=C:\isaacsim"
set "ROS_DISTRO=jazzy"
set "RMW_IMPLEMENTATION=rmw_fastrtps_cpp"
set "ROS_DOMAIN_ID=0"
set "FASTRTPS_DEFAULT_PROFILES_FILE=C:\ros\fastdds.xml"
set "PATH=%isaac_sim_package_path%\exts\isaacsim.ros2.core\%ROS_DISTRO%\lib;%PATH%"

Launch Isaac Sim in the same terminal:

"%isaac_sim_package_path%\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

PowerShell

Configure the Windows bridge environment:

$env:isaac_sim_package_path = "C:\isaacsim"
$env:ROS_DISTRO = "jazzy"
$env:RMW_IMPLEMENTATION = "rmw_fastrtps_cpp"
$env:ROS_DOMAIN_ID = "0"
$env:FASTRTPS_DEFAULT_PROFILES_FILE = "C:\ros\fastdds.xml"
$env:PATH = "$env:isaac_sim_package_path\exts\isaacsim.ros2.core\$env:ROS_DISTRO\lib;$env:PATH"

Launch Isaac Sim in the same terminal:

& "$env:isaac_sim_package_path\isaac-sim.bat" --/isaac/startup/ros_bridge_extension=isaacsim.ros2.bridge

Verify the connection

1. In the simulator, choose Tools > Robotics > ROS 2 OmniGraphs > Clock > OK.

2. Press Play.

3. In the external-node terminal, echo /clock using the selected workflow below. Timestamps confirm publication. Use the same middleware and ROS_DOMAIN_ID for all participants, including any explicit ROS 2 Context node domain. The examples use domain 0; choose another domain if needed and set the same value everywhere.

ros2 topic echo /clock

ros2 topic echo /clock

ros2 topic echo /clock

pixi run ros2 topic echo /clock

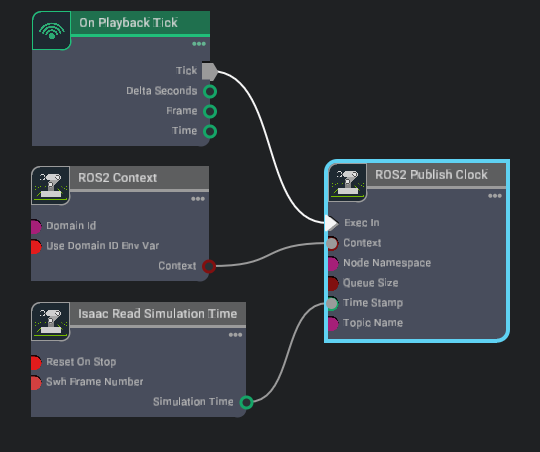

Example OmniGraph for publishing simulation time on /clock.

See Isaac Sim OmniGraph Tutorial for working with ROS 2 OmniGraphs.

Additional options

Reuse an existing workspace clone

Preserve any local work before switching releases. From the repository root, check git status. Use a separate clone if you need to keep another release’s build or local changes.

Fetch tags and select the release matching these docs:

git fetch --tags
git switch --detach IsaacSim-6.2.0

Initialize the selected release’s submodules before building (on the host for Docker):

git submodule update --init --recursive

Rebuild for the selected release; do not reuse incompatible build, install, and log outputs. On Windows/Pixi, run pixi install, pixi run clean, then pixi run build from the selected workspace. For colcon builds, move the old build directories aside or use a fresh clone before rebuilding.

Standalone Python scripts

Scripts must enable isaacsim.ros2.bridge and update the application before importing generated custom interfaces.

Use the simulator environment configured above and replace the app command with:

~/isaacsim/python.sh <path/to/standalone/script.py>

Use the simulator environment configured above and replace the app command with:

~/isaacsim/python.sh <path/to/standalone/script.py>

Keep the Zenoh router running. Open a clean terminal outside Pixi with ROS_DISTRO unset. Activate only local_setup for custom packages; setup would also import Pixi’s underlay. Skip activation if no custom packages are needed. Adjust the workspace and simulator paths if necessary.

Command Prompt

Activate custom packages, if needed:

call "C:\IsaacSim-ros_workspaces\jazzy_ws\install\local_setup.bat"

Run the script with the bundled launcher:

"C:\isaacsim\python.bat" "<standalone-script.py>"

PowerShell

Activate custom packages, if needed:

. "C:\IsaacSim-ros_workspaces\jazzy_ws\install\local_setup.ps1"

Run the script with the bundled launcher:

& "C:\isaacsim\python.bat" "<standalone-script.py>"

The launcher supplies bundled Jazzy/Zenoh, libraries, and package index when ROS_DISTRO is unset; explicit settings are preserved.

In the configured Windows simulator terminal, keep the selected distro, library path, and Fast DDS settings. Replace the app command with:

Command Prompt

"%isaac_sim_package_path%\python.bat" "<standalone-script.py>"

PowerShell

& "$env:isaac_sim_package_path\python.bat" "<standalone-script.py>"

Fast DDS networking for remote nodes and containers

Configure Fast DDS over UDP

Local native ROS nodes on the same Linux host normally need no extra network setup.

Single-host Linux uses Fast DDS shared memory by default. For remote machines, containers, or WSL, allow DDS UDP traffic and create ~/.ros/fastdds.xml (mkdir -p ~/.ros) with:

<?xml version="1.0" encoding="UTF-8"?>
<profiles xmlns="http://www.eprosima.com/XMLSchemas/fastRTPS_Profiles">
  <transport_descriptors>
    <transport_descriptor>
      <transport_id>UdpTransport</transport_id>
      <type>UDPv4</type>
    </transport_descriptor>
  </transport_descriptors>
  <participant profile_name="udp_transport_profile" is_default_profile="true">
    <rtps>
      <userTransports><transport_id>UdpTransport</transport_id></userTransports>
      <useBuiltinTransports>false</useBuiltinTransports>
    </rtps>
  </participant>
</profiles>

Before launching nodes, set these in every communicating Linux terminal:

export RMW_IMPLEMENTATION=rmw_fastrtps_cpp
export FASTRTPS_DEFAULT_PROFILES_FILE="$HOME/.ros/fastdds.xml"
export ROS_DOMAIN_ID=0

Copy the profile to each machine and use its local path. Windows bridge settings are in Launch the simulator.

Single-host Linux uses Fast DDS shared memory by default. For remote machines, containers, or WSL, allow DDS UDP traffic and create ~/.ros/fastdds.xml (mkdir -p ~/.ros) with:

<?xml version="1.0" encoding="UTF-8"?>
<profiles xmlns="http://www.eprosima.com/XMLSchemas/fastRTPS_Profiles">
  <transport_descriptors>
    <transport_descriptor>
      <transport_id>UdpTransport</transport_id>
      <type>UDPv4</type>
    </transport_descriptor>
  </transport_descriptors>
  <participant profile_name="udp_transport_profile" is_default_profile="true">
    <rtps>
      <userTransports><transport_id>UdpTransport</transport_id></userTransports>
      <useBuiltinTransports>false</useBuiltinTransports>
    </rtps>
  </participant>
</profiles>

Before launching nodes, set these in every communicating Linux terminal:

export RMW_IMPLEMENTATION=rmw_fastrtps_cpp
export FASTRTPS_DEFAULT_PROFILES_FILE="$HOME/.ros/fastdds.xml"
export ROS_DOMAIN_ID=0

Copy the profile to each machine and use its local path. Windows bridge settings are in Launch the simulator.

For Windows and WSL on the same machine, create ~/.ros/fastdds.xml in WSL (mkdir -p ~/.ros). Replace WINDOWS_HOST_IP and WSL_IP with the NAT addresses from Launch the simulator:

<?xml version="1.0" encoding="UTF-8"?>
<profiles xmlns="http://www.eprosima.com/XMLSchemas/fastRTPS_Profiles">
  <transport_descriptors>
    <transport_descriptor>
      <transport_id>UdpTransport</transport_id>
      <type>UDPv4</type>
      <maxInitialPeersRange>120</maxInitialPeersRange>
    </transport_descriptor>
  </transport_descriptors>
  <participant profile_name="udp_transport_profile" is_default_profile="true">
    <rtps>
      <builtin>
        <initialPeersList>
          <locator><udpv4><address>WINDOWS_HOST_IP</address></udpv4></locator>
          <locator><udpv4><address>WSL_IP</address></udpv4></locator>
        </initialPeersList>
      </builtin>
      <userTransports><transport_id>UdpTransport</transport_id></userTransports>
      <useBuiltinTransports>false</useBuiltinTransports>
    </rtps>
  </participant>
</profiles>

Before launching nodes, set these in every communicating Linux terminal:

export RMW_IMPLEMENTATION=rmw_fastrtps_cpp
export FASTRTPS_DEFAULT_PROFILES_FILE="$HOME/.ros/fastdds.xml"
export ROS_DOMAIN_ID=0

Copy the profile to each machine and use its local path. Windows bridge settings are in Launch the simulator.

External ROS nodes in Docker

Follow Build external Jazzy nodes in Docker in the workspace build steps above.

Install Docker Engine and configure Docker access for your account. Clone on the host if needed:

git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

For an existing clone, follow Reuse an existing workspace clone on the host before mounting it. First configure Configure Fast DDS over UDP, then configure the host simulator for the same distro, domain, and transport. This container runs external nodes, not the simulator or custom-interface build. The WSL Docker workflow is not supported by this guide.

ros_distro=humble
ros_image=osrf/ros:humble-desktop

ros_distro=jazzy
ros_image=osrf/ros:jazzy-desktop

For aarch64 (DGX Spark), use ros_image=arm64v8/ros:jazzy instead.

Optional GUI applications in the container

This requires a working host X11/XWayland display and socket.

1. Before starting the container: run xhost +si:localuser:root on the host. Add -e DISPLAY -v /tmp/.X11-unix:/tmp/.X11-unix:rw before the image name in the docker run command below.

2. Inside the container: install ros-${ROS_DISTRO}-rviz2 if needed, source ROS, and run rviz2.

3. After closing GUI apps: revoke display access on the host with xhost -si:localuser:root.

Start the container from the host terminal. The mounts share your workspace and UDP profile with the container:

docker run -it --net=host --name ros_ws_docker \
  -e ROS_DOMAIN_ID=0 -e RMW_IMPLEMENTATION=rmw_fastrtps_cpp \
  -e FASTRTPS_DEFAULT_PROFILES_FILE=/fastdds.xml \
  -v "$HOME/.ros/fastdds.xml:/fastdds.xml:ro" \
  -v "$HOME/IsaacSim-ros_workspaces/${ros_distro}_ws:/${ros_distro}_ws" \
  "$ros_image" /bin/bash

In the container shell:

1. Activate ROS and enter the mounted workspace. Add any custom packages to its src directory before installing dependencies:

   source /opt/ros/$ROS_DISTRO/setup.bash
   cd /${ROS_DISTRO}_ws


2. Install the build tools.

   apt-get update
   apt-get install -y python3-rosdep python3-colcon-common-extensions build-essential


3. Prepare rosdep. If it has not already been initialized in this container, run:

   rosdep init


   Refresh the dependency database:

   rosdep update


4. Install workspace dependencies.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this container shell:

   source install/local_setup.bash


Open additional shells with docker exec -it ros_ws_docker /bin/bash, then source both /opt/ros/$ROS_DISTRO/setup.bash and /${ROS_DISTRO}_ws/install/local_setup.bash. Verify with ros2 topic echo /clock while the simulator publishes.

See Reuse or save a ROS container to reopen or save this container.

Install Docker Engine and configure Docker access for your account. Clone on the host if needed:

git clone --branch IsaacSim-6.2.0 --recurse-submodules https://github.com/isaac-sim/IsaacSim-ros_workspaces.git ~/IsaacSim-ros_workspaces

For an existing clone, follow Reuse an existing workspace clone on the host before mounting it. First configure Configure Fast DDS over UDP, then configure the host simulator for the same distro, domain, and transport. This container runs external nodes, not the simulator or custom-interface build. The WSL Docker workflow is not supported by this guide.

ros_distro=humble
ros_image=osrf/ros:humble-desktop

ros_distro=jazzy
ros_image=osrf/ros:jazzy-desktop

For aarch64 (DGX Spark), use ros_image=arm64v8/ros:jazzy instead.

Optional GUI applications in the container

This requires a working host X11/XWayland display and socket.

1. Before starting the container: run xhost +si:localuser:root on the host. Add -e DISPLAY -v /tmp/.X11-unix:/tmp/.X11-unix:rw before the image name in the docker run command below.

2. Inside the container: install ros-${ROS_DISTRO}-rviz2 if needed, source ROS, and run rviz2.

3. After closing GUI apps: revoke display access on the host with xhost -si:localuser:root.

Start the container from the host terminal. The mounts share your workspace and UDP profile with the container:

docker run -it --net=host --name ros_ws_docker \
  -e ROS_DOMAIN_ID=0 -e RMW_IMPLEMENTATION=rmw_fastrtps_cpp \
  -e FASTRTPS_DEFAULT_PROFILES_FILE=/fastdds.xml \
  -v "$HOME/.ros/fastdds.xml:/fastdds.xml:ro" \
  -v "$HOME/IsaacSim-ros_workspaces/${ros_distro}_ws:/${ros_distro}_ws" \
  "$ros_image" /bin/bash

In the container shell:

1. Activate ROS and enter the mounted workspace. Add any custom packages to its src directory before installing dependencies:

   source /opt/ros/$ROS_DISTRO/setup.bash
   cd /${ROS_DISTRO}_ws


2. Install the build tools.

   apt-get update
   apt-get install -y python3-rosdep python3-colcon-common-extensions build-essential


3. Prepare rosdep. If it has not already been initialized in this container, run:

   rosdep init


   Refresh the dependency database:

   rosdep update


4. Install workspace dependencies.

   rosdep install --from-paths src --ignore-src --rosdistro "$ROS_DISTRO" -y


5. Build the workspace.

   colcon build


6. Activate the built packages in this container shell:

   source install/local_setup.bash


Open additional shells with docker exec -it ros_ws_docker /bin/bash, then source both /opt/ros/$ROS_DISTRO/setup.bash and /${ROS_DISTRO}_ws/install/local_setup.bash. Verify with ros2 topic echo /clock while the simulator publishes.

See Reuse or save a ROS container to reopen or save this container.

Reuse or save a ROS container

Resume the existing container. After exiting its shell, restart it from the host:

docker start -ai ros_ws_docker

If it is already running, open another shell with docker exec -it ros_ws_docker /bin/bash. Do not repeat docker run with the same name while that container exists.

In every new container shell, source ROS, then the mounted workspace:

source /opt/ros/$ROS_DISTRO/setup.bash
source /${ROS_DISTRO}_ws/install/local_setup.bash

Save installed dependencies as an image (optional). Exit the container shell so it stops, then run these commands on the host:

docker commit ros_ws_docker isaac_sim_ros_ws:latest

The image excludes bind-mounted files. Keep the host workspace and Fast DDS profile: they are still required when you reuse the image.

To replace the stopped container with one from the saved image, remove it:

docker rm ros_ws_docker

In the host terminal, set the distro and image variables from the selected Docker setup, then override the image:

ros_image=isaac_sim_ros_ws:latest

Repeat the selected Docker setup’s docker run command with the same workspace/profile mounts and network settings. Source ROS and the workspace in the new shell as above.

Cyclone DDS

Bundled Humble/Jazzy libraries include Cyclone DDS. Install it for external ROS using the official Humble or Jazzy instructions. Set export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp in all participating terminals and restart nodes.

Bundled Humble/Jazzy libraries include Cyclone DDS. Install it for external ROS using the official Humble or Jazzy instructions. Set export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp in all participating terminals and restart nodes.

Cyclone DDS is not supported for Windows WSL. The documented Pixi workflow uses Zenoh.

Zenoh

Pixi already configures Zenoh. Use Launch the simulator or the standalone instructions.

Zenoh in Windows WSL is untested; use Fast DDS.

Zenoh with Humble on Ubuntu 22.04 is untested; use Fast DDS or Cyclone DDS.

Linux bundled libraries do not include Zenoh; install or build it. See the ROS Zenoh reference.

Install Zenoh for the system ROS installation:

sudo apt install ros-jazzy-rmw-zenoh-cpp

Router terminal: source ROS and start the router. Leave it running:

source /opt/ros/jazzy/setup.bash
ros2 run rmw_zenoh_cpp rmw_zenohd

Simulator terminal: activate ROS and select Zenoh:

source /opt/ros/jazzy/setup.bash
export RMW_IMPLEMENTATION=rmw_zenoh_cpp

Launch Isaac Sim in that terminal:

~/isaacsim/isaac-sim.sh

External-node terminals: use the same ROS setup script and RMW setting before starting nodes.

Linux bundled libraries do not include Zenoh; install or build it. See the ROS Zenoh reference.

Ubuntu 22.04/Jazzy (untested): add Zenoh to the Python 3.12 build:

cd ~/IsaacSim-ros_workspaces/jazzy_ws/src
git clone -b jazzy https://github.com/ros2/rmw_zenoh.git

Rebuild the Python 3.12 environment on the host:

cd ~/IsaacSim-ros_workspaces
./build_ros.sh -d jazzy -v 22.04

Container setup: install Zenoh in the Jazzy container:

apt-get update
apt-get install -y ros-jazzy-rmw-zenoh-cpp

Router terminal (container): start the router and leave it running:

source /opt/ros/jazzy/setup.bash
ros2 run rmw_zenoh_cpp rmw_zenohd

Simulator terminal (host): open a clean terminal and activate the Python 3.12 build with Zenoh:

cd ~/IsaacSim-ros_workspaces
source build_ws/jazzy/jazzy_ws/install/local_setup.bash
source build_ws/jazzy/isaac_sim_ros_ws/install/local_setup.bash
export RMW_IMPLEMENTATION=rmw_zenoh_cpp

Launch Isaac Sim in that host terminal:

~/isaacsim/isaac-sim.sh

Additional container terminals must source ROS and the workspace and override RMW_IMPLEMENTATION=rmw_zenoh_cpp before starting nodes.

Bridge startup and experimental distributions

Disable bridge startup with ~/isaacsim/isaac-sim.sh --/isaac/startup/ros_bridge_extension="". Humble and Jazzy are tested. Other natively installed ROS distributions on Ubuntu 22.04/24.04 are experimental: source a compatible environment before launch; arbitrary distro/Python combinations are not guaranteed.

Disable bridge startup with ~/isaacsim/isaac-sim.sh --/isaac/startup/ros_bridge_extension="". Humble and Jazzy are tested. Other natively installed ROS distributions on Ubuntu 22.04/24.04 are experimental: source a compatible environment before launch; arbitrary distro/Python combinations are not guaranteed.

Windows disables automatic bridge startup by default; the Pixi task and WSL commands above enable it explicitly.

For a persistent change, set isaac.startup.ros_bridge_extension = "" in apps/isaacsim.exp.full.kit.

Next steps

Continue to ROS 2 Reference Architecture for the bridge architecture and tutorials.
